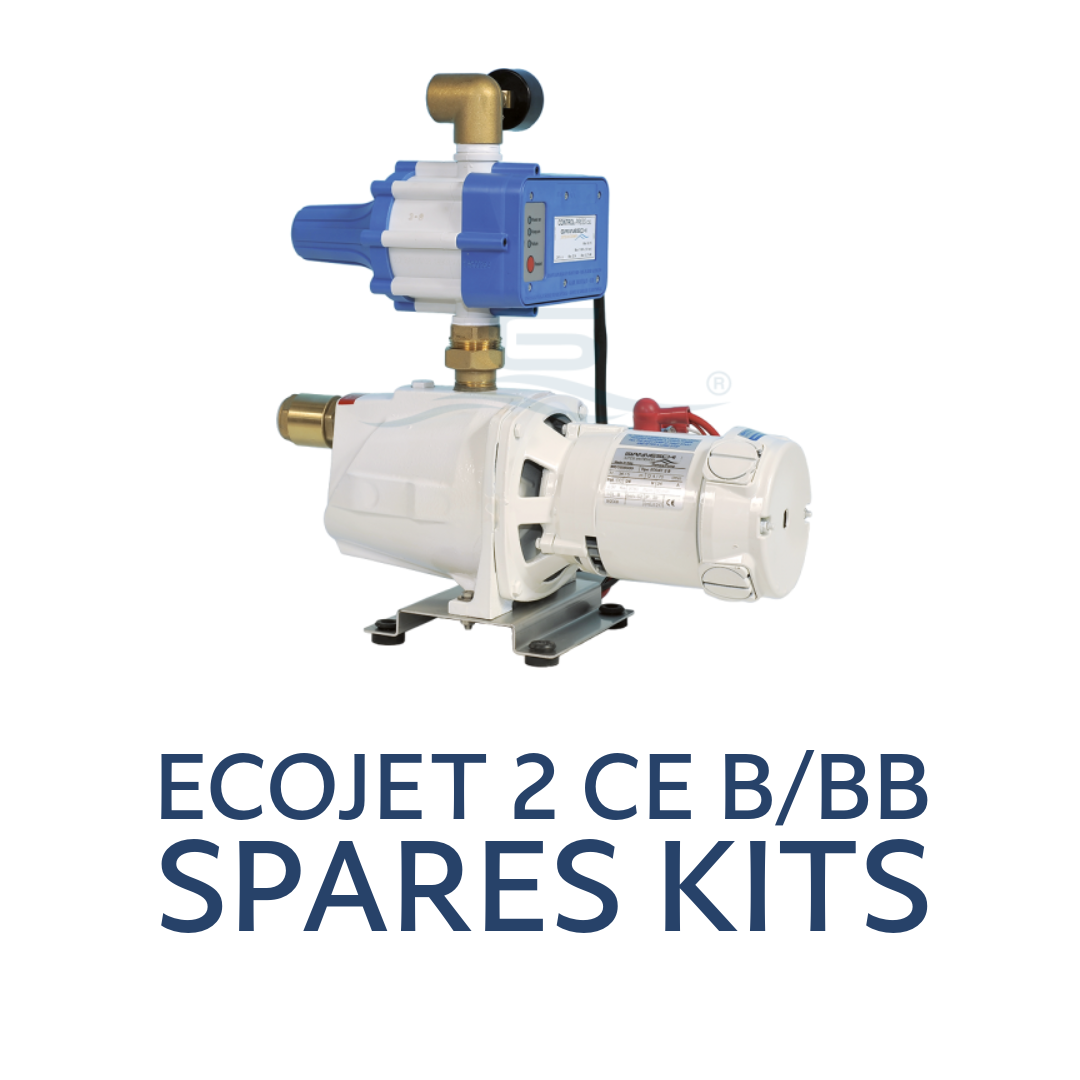

Gianneschi ECOJET 2 CE B/BB Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZECOJ2CE01NT – Kit Ric. ECOJET 2 CE B/BB 24V CC (Actual Version)

• 15CE1 – Control-Press C.E. 115 (24V CC) 1.5 BAR 1'' (1 Piece)
• 15MRD506P – Pressure Gauge D.50 – 0–6 ATE (1 Piece)
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New Br. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM48 – Brush GM4 10x18x20+Spring (MV44G) (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ2CE02N – Kit ECOJET 2 CE B/BB 220V Mono 50Hz (Actual Version)

• 15CET2 – Control-Press C.E. Tarabile (230V CA) 1" (1 Piece)
• 15MRD506P – Pressure Gauge D.50 – 0–6 ATE (1 Piece)
• CUF14 – Capacitor MF 14 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New Br. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ2CE03N – Kit ECOJET 2 CE B/BB 230/400Tr. 50Hz (Actual Version)

• 15CET2 – Control-Press C.E. Tarabile (230V CA) 1" (1 Piece)
• 15MRD506P – Pressure Gauge D.50 – 0–6 ATE (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New Br. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
