Dometic
AT36HVZ 115V
AT36HVZ 115V
Regular price
£4,694.00
Regular price
Sale price
£4,694.00
Unit price
/
per
Couldn't load pickup availability

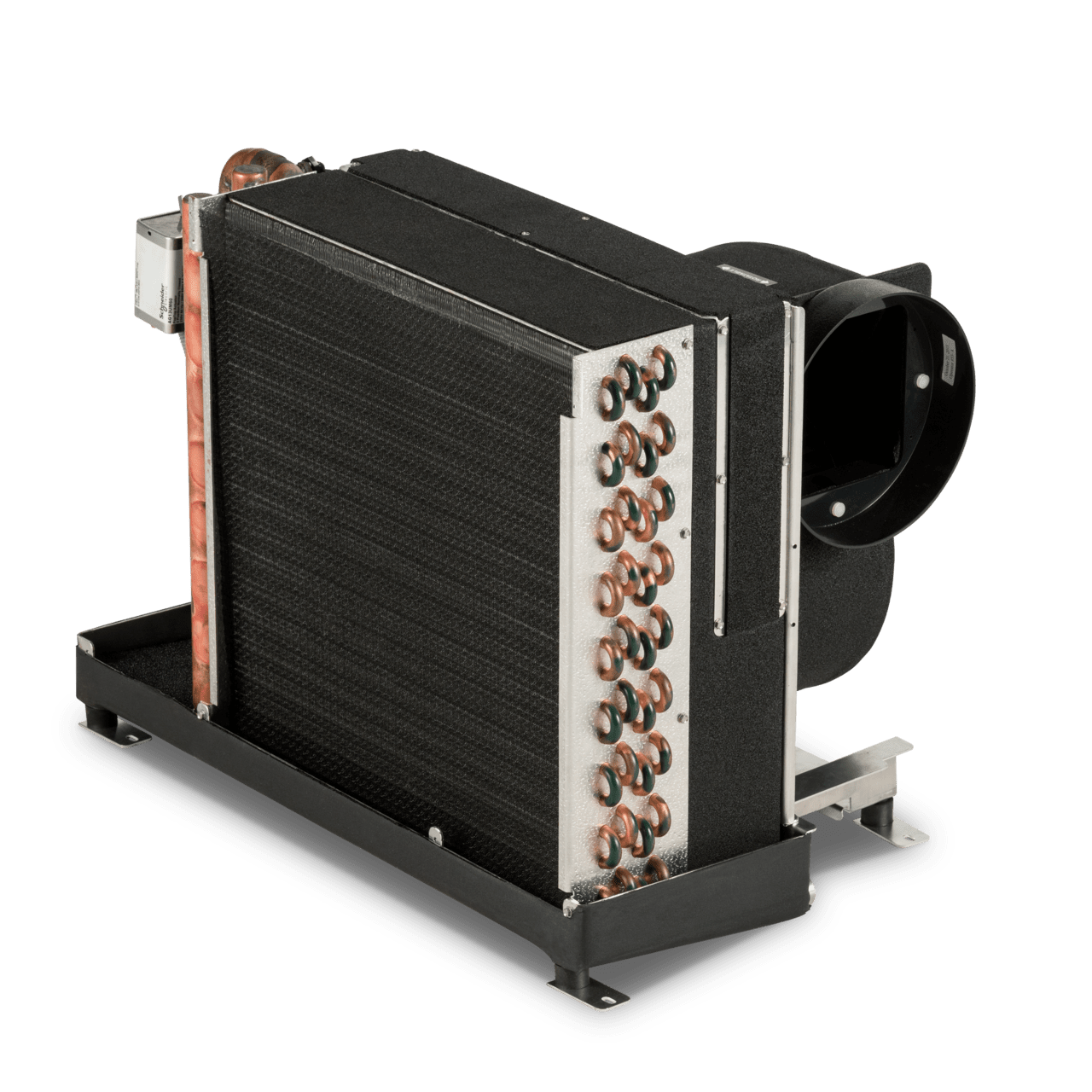

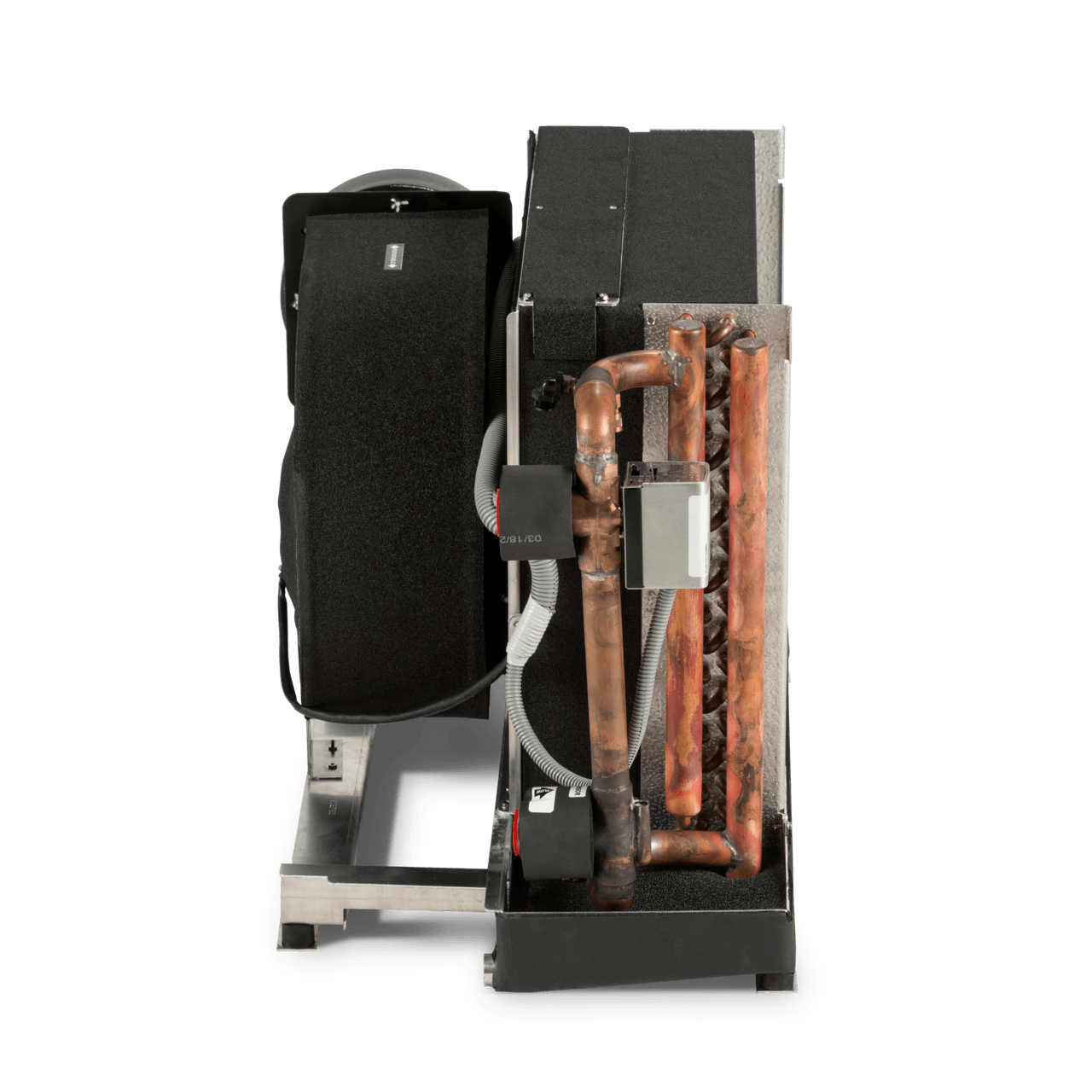

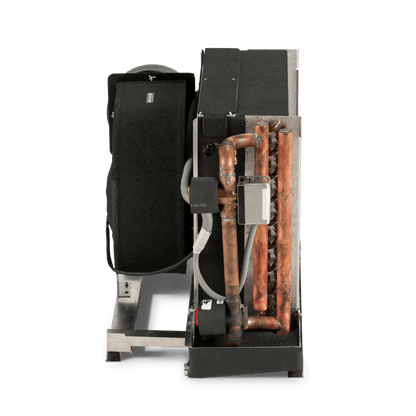

At Nauticool, we supply the Dometic AT-HV high-velocity air handler, engineered to integrate efficiently with ducted air systems aboard a variety of marine vessels. The AT-HV unit is designed to deliver consistent and high-capacity airflow through its centrifugal blower assembly, ensuring reliable circulation throughout the vessel’s climate zones. Built for flexible installation, the unit accommodates both retrofit and new-build scenarios with ease.
Technical Specifications:
- Model Number: AT-HV
- Voltage Supply: 115 AC, 50/60 Hz
- Blower Type: High-velocity centrifugal blower
- Motor Type: PSC (Permanent Split Capacitor)
- Drain Pan: Aluminium contruction with dual drain fittings
- Ducting Connection Size: Compatible with 5” to 8” ducting
- Mounting Configuration: Multi-orientation brackets for horizontal installation
- Casing Material: Corrosion-resistant galvanised steel
EU - Includes a Deutsch plug loom
