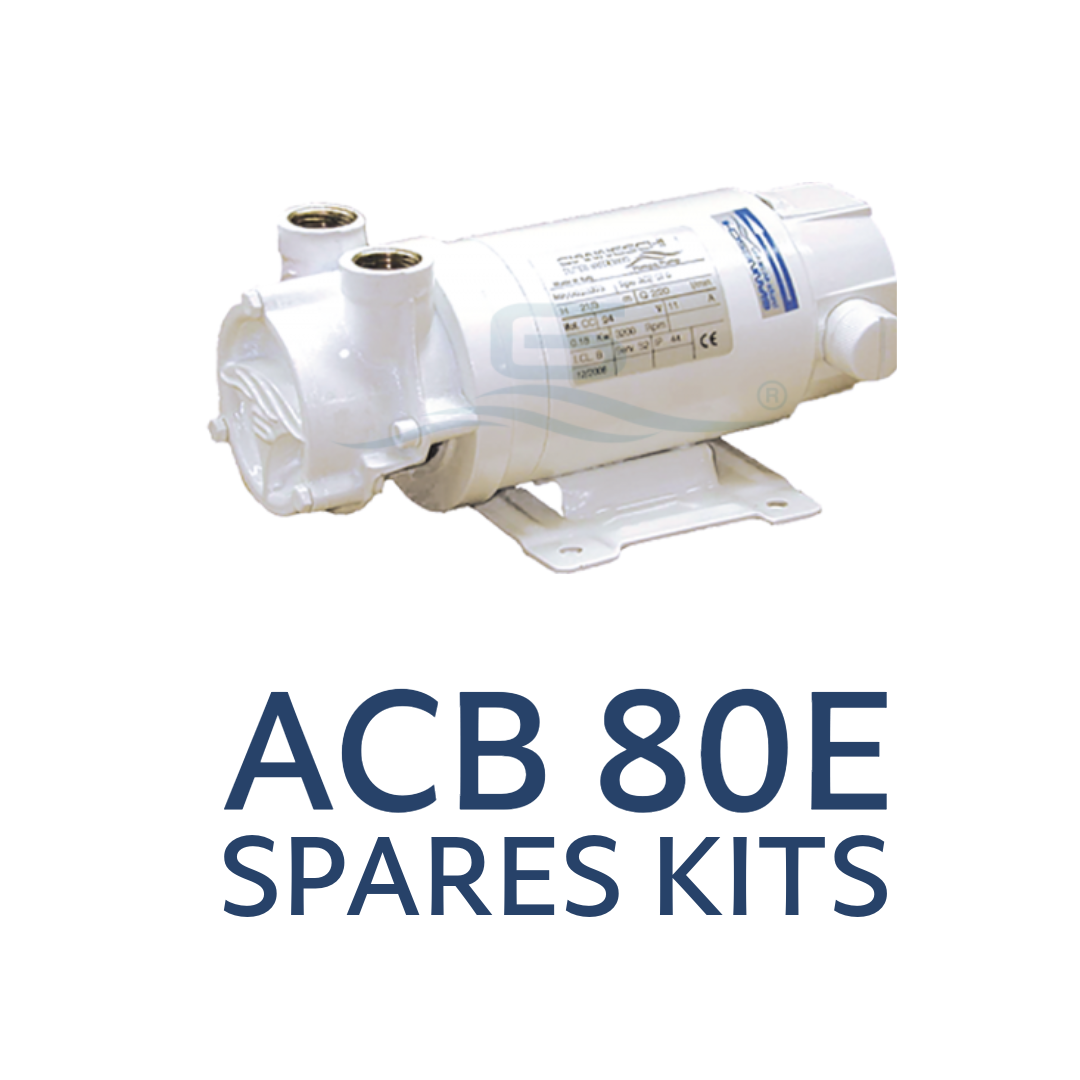

Gianneschi ACB 80 E Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KACB8000E - Spare Parts Kit ACB 80 E 12V CC (Actual Version)

• RACB801N - Impeller per ACB 80E Bronze (1 Piece)
• RACB802 - O'Ring per ACB 80 (1 Piece)
• RACB803 - Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I - Seeger x EL/P. ACB 80/90-Jet 3/4/4R-CB20/22 (1 Piece)
• RACB806 - Key per ACB80-90E CB20-22E 4x4x12 AISI316 (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e ECOJET Shaft D.12 (1 Piece)
• SGM41A - Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Y - Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KACB8001E - Spare Parts Kit ACB 80 E 24V CC (Actual Version)

• RACB801N - Impeller per ACB 80E Bronze (1 Piece)
• RACB802 - O'Ring per ACB 80 (1 Piece)
• RACB803 - Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I - Seeger x EL/P. ACB 80/90-Jet 3/4/4R-CB20/22 (1 Piece)
• RACB806 - Key per ACB80-90E CB20-22E 4x4x12 AISI316 (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e ECOJET Shaft D.12 (1 Piece)
• SGM41A - Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Y - Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KACB8002E - Spare Parts Kit ACB 80 E 220V Mono (Actual Version)

• RACB801N - Impeller per ACB 80E Bronze (1 Piece)
• RACB802 - O'Ring per ACB 80 (1 Piece)
• RACB803 - Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I - Seeger x EL/P. ACB 80/90-Jet 3/4/4R-CB20/22 (1 Piece)
• RACB806 - Key per ACB80-90E CB20-22E 4x4x12 AISI316 (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e ECOJET Shaft D.12 (1 Piece)
• TMD12Y - Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KACB8003E - Spare Parts Kit ACB 80 E 230/400V T (Actual Version)

• RACB801N - Impeller per ACB 80E Bronze (1 Piece)
• RACB802 - O'Ring per ACB 80 (1 Piece)
• RACB803 - Diffuser per ACB 80 in Bronze (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e ECOJET Shaft D.12 (1 Piece)
• RJET1 - Impeller Key x Jet 1-3-4, 4x4x12 (1 Piece)
• RJET20 - Seeger x 1-4 Jet per Shaft (1 Piece)
• TMD12Z - Mechanical Seal D.12 X7X72Z7 Inox 316 Roten (1 Piece)

If the spares kit is not in stock, it will be approximately a 2-4 week lead time from the factory. Please contact Nauticool to purchase this kit or the individual spares.
