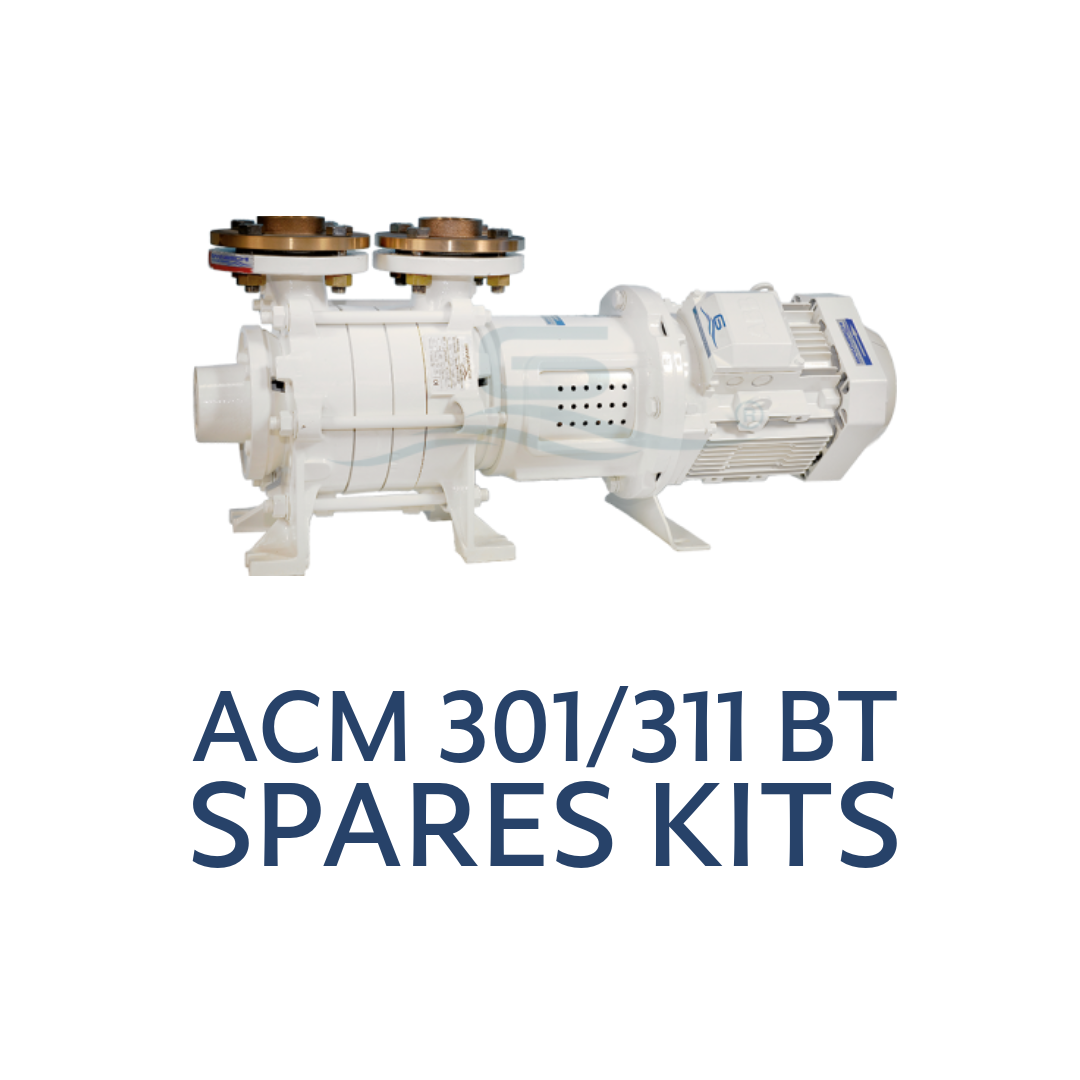

Gianneschi ACM 301/311 BT Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KACM30101 - Spare Parts Kit ACM301/311BT 24V CC Reduced

• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)
• SGM42A - Brush GM4 10x25x25, with Double Isolated Wire Connection (4 Pieces)

KACM30101C - Spare Parts Kit ACM301/311BT 24V CC Complete

• RACM3011 - Impeller per ACM/ACB 300 E CP45 Bronze (1 Piece)
• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)
• RACM3016 - Kit Seeger ACM 301/311/312 BT (Bronze) (1 Piece)
• RACM3021 - Elastic Ring ACM 301/311/312 BT (1 Piece)
• RACM3022 - Scraper 35x22x7 x ACM 301/311/312 BT (2 Pieces)
• RACM3023 - Impeller Key x ACM 290/300 6x6x15 (1 Piece)
• RACM3027 - Shoulder Ring Mechanical Seal ACM301-311-312 (4 Pieces)
• SGM42A - Brush GM4 10x25x25, with Double Isolated Wire Connection (4 Pieces)

KACM30102 - Spare Parts Kit ACM301/311BT 220V Mono Reduced

• CUF31,5 - Capacitor MF 31.5 (1 Piece)
• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)

KACM30102C - Spare Parts Kit ACM301/311BT 220V Mono Complete

• CUF31,5 - Capacitor MF 31.5 (1 Piece)
• RACM3011 - Impeller per ACM/ACB 300 E CP45 Bronze (1 Piece)
• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)
• RACM3016 - Kit Seeger ACM 301/311/312 BT (Bronze) (1 Piece)
• RACM3021 - Elastic Ring ACM 301/311/312 BT (1 Piece)
• RACM3022 - Scraper 35x22x7 x ACM 301/311/312 BT (2 Pieces)
• RACM3023 - Impeller Key x ACM 290/300 6x6x15 (1 Piece)
• RACM3027 - Shoulder Ring Mechanical Seal ACM301-311-312 (4 Pieces)

KACM30103 - Spare Parts Kit ACM301/311BT 220/380V TR. Reduced

• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)
• RACM3016 - Kit Seeger ACM 301/311/312 BT (Bronze) (1 Piece)

KACM30103C - Spare Parts Kit ACM301/311BT 220/380V TR. Complete

• RACM3011 - Impeller per ACM/ACB 300 E CP45 Bronze (1 Piece)
• RACM3012 - Gasket for Disc ACM/B Serie 300 BT (3 Pieces)
• RACM30121 - Gaskets Bearing Holder per ACM 300 BT (2 Pieces)
• RACM3013 - Mechanical Seal d.22 FP/D -B-BT 301/2 Seal in Viton Inox (2 Pieces)
• RACM3016 - Kit Seeger ACM 301/311/312 BT (Bronze) (1 Piece)
• RACM3021 - Elastic Ring ACM 301/311/312 BT (1 Piece)
• RACM3022 - Scraper 35x22x7 x ACM 301/311/312 BT (2 Pieces)
• RACM3023 - Impeller Key x ACM 290/300 6x6x15 (1 Piece)
• RACM3027 - Shoulder Ring Mechanical Seal ACM301-311-312 (4 Pieces)

If the spares kit is not in stock, it will be approximately a 2-4 week lead time from the factory. Please contact Nauticool to purchase this kit or the individual spares.
