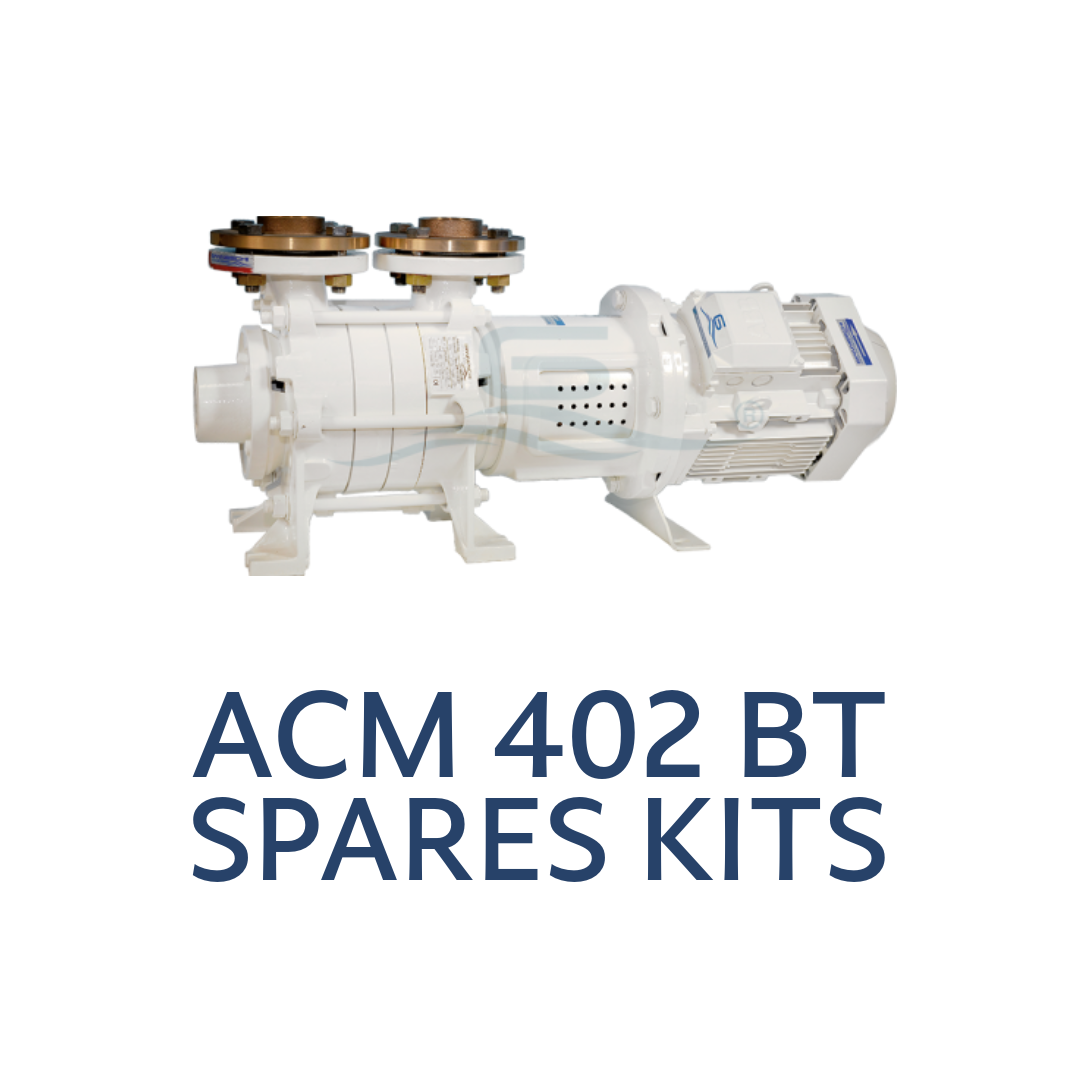

Gianneschi ACM 402 BT Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KACM40202 - Spare Parts Kit ACM402 BT 220V Mono Reduced

• CUF80 - Capacitor MF 80 con Cavo Bipolare (1 Piece)
• RACM4012 - Gasket for Disc X ACM/B 400 BT (5 Pieces)
• RACM40121 - Gaskets Bearing Holder (2 Pieces)
• RACM40131 - Mechanical Seal D.28 Viton+Inox (2 Pieces)

KACM40202C - Spare Parts Kit ACM402 BT 220V Mono Complete

• CUF80 - Capacitor MF 80 con Cavo Bipolare (1 Piece)
• RACM4011 - Impeller per ACM/ACB 400 Bronze (2 Pieces)
• RACM4012 - Gasket for Disc X ACM/B 400 BT (5 Pieces)
• RACM40121 - Gaskets Bearing Holder (2 Pieces)
• RACM40131 - Mechanical Seal D.28 Viton+Inox (2 Pieces)
• RACM4016 - Kit Seeger D.65 + D.25 per ACM (1 Piece)
• RACM4019 - Scraper 40x28x7 x ACM 401/501 BT (2 Pieces)
• RACM4020 - Impeller Key x ACM 400/500 8x7x20 (2 Pieces)
• RACM4024 - Elastic Ring per ACM401/402/501 D.62 (1 Piece)

KACM40203 - Spare Parts Kit ACM402 BT 220/380V TR. Reduced

• RACM4012 - Gasket for Disc X ACM/B 400 BT (5 Pieces)
• RACM40121 - Gaskets Bearing Holder (2 Pieces)
• RACM40131 - Mechanical Seal D.28 Viton+Inox (2 Pieces)

KACM40203C - Spare Parts Kit ACM402 BT 230/400 TR. Complete

• RACM4011 - Impeller per ACM/ACB 400 Bronze (2 Pieces)
• RACM4012 - Gasket for Disc X ACM/B 400 BT (5 Pieces)
• RACM40121 - Gaskets Bearing Holder (2 Pieces)
• RACM40131 - Mechanical Seal D.28 Viton+Inox (2 Pieces)
• RACM4016 - Kit Seeger D.65 + D.25 per ACM (1 Piece)
• RACM4019 - Scraper 40x28x7 x ACM 401/501 BT (2 Pieces)
• RACM4020 - Impeller Key x ACM 400/500 8x7x20 (2 Pieces)
• RACM4024 - Elastic Ring per ACM401/402/501 D.62 (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
