Gianneschi

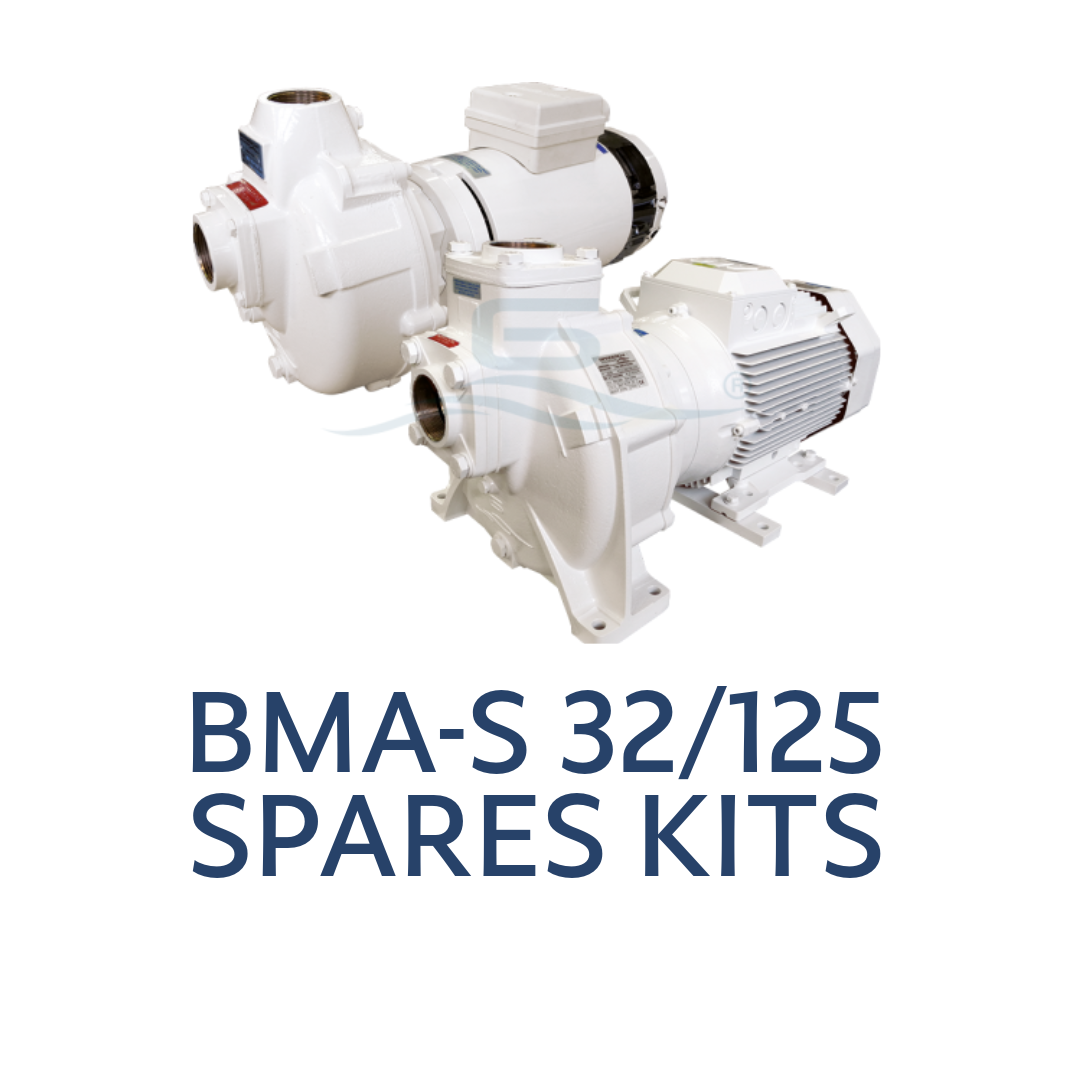

Gianneschi BMA-S 32/125 Spares Kits

Gianneschi BMA-S 32/125 Spares Kits

Regular price £759.00
Regular price Sale price £759.00
Sale Call 01202 739937
Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KBMAS3212A101C - Spare Parts Kit BMA-S 32/125 A1 24V Complete

  • 02BMA21611 - Impeller BMA 32/125 High (h5.5) (1 Piece)
  • 15APS192605 - Thickness Ring Type PS DIN988 D.19x26 Sp.0.5mm (5 Pieces)
  • 15APS192610 - Thickness Ring Type PS DIN988 D.19x26 Sp.1.0mm (1 Piece)
  • 15ATIG12 - Seal Ring Inox (AISI316-NBR) G1/2" Sp.2.5mm (4 Pieces)
  • 15ATIG34 - Seal Ring Inox (AISI316-NBR) G3/4" Sp.2.5mm (1 Piece)
  • 15ATR061215 - Seal Ring in Copper D.6x12 Sp.1.5mm (1 Piece)
  • RBMAS3201 - O-Ring Body Pump BMA-S 32 in NBR (1 Piece)
  • RBMAS3202 - O-Ring Volute Pump BMA-S 32 in NBR (1 Piece)
  • SGM41A - Brush GM4 10x18x19 with Protected Tail (4 Pieces)
  • TMB30XC01 - Mechanical Seal x ACB451 - BMA32 (S/G/M) (1 Piece)

KBMAS3212A103C - Spare Parts Kit BMA-S 32/125A 230/400V 3Ph Complete

  • 02BMA21611 - Impeller BMA 32/125 High (h5.5) (1 Piece)
  • 15APS192605 - Thickness Ring Type PS DIN988 D.19x26 Sp.0.5mm (4 Pieces)
  • 15APS192610 - Thickness Ring Type PS DIN988 D.19x26 Sp.1.0mm (1 Piece)
  • 15ATR061215 - Seal Ring in Copper D.6x12 Sp.1.5mm (1 Piece)
  • RBMAS3201 - O-Ring Body Pump BMA-S 32 in NBR (1 Piece)
  • RBMAS3202 - O-Ring Volute Pump BMA-S 32 in NBR (1 Piece)
  • TMB30XC01 - Mechanical Seal x ACB451 - BMA32 (S/G/M) (1 Piece)

KBMAS3212B101C - Spare Parts Kit BMA-S 32/125 B1 24V Complete

  • 02BMA21603 - Impeller BMA 32/125 Low (h3.6) (1 Piece)
  • 15APS192605 - Thickness Ring Type PS DIN988 D.19x26 Sp.0.5mm (4 Pieces)
  • 15APS192610 - Thickness Ring Type PS DIN988 D.19x26 Sp.1.0mm (1 Piece)
  • 15ATR061215 - Seal Ring in Copper D.6x12 Sp.1.5mm (1 Piece)
  • RBMAS3201 - O-Ring Body Pump BMA-S 32 in NBR (1 Piece)
  • RBMAS3202 - O-Ring Volute Pump BMA-S 32 in NBR (1 Piece)
  • SGM41A - Brush GM4 10x18x19 with Protected Tail (4 Pieces)
  • TMB30XC01 - Mechanical Seal x ACB451 - BMA32 (S/G/M) (1 Piece)

KBMAS3212B102C - Spare Parts Kit BMA-S 32/125 B1 230V 1Ph 50Hz Complete

  • 02BMA21603 - Impeller BMA 32/125 Low (h3.6) (1 Piece)
  • 15APS192605 - Thickness Ring Type PS DIN988 D.19x26 Sp.0.5mm (4 Pieces)
  • 15APS192610 - Thickness Ring Type PS DIN988 D.19x26 Sp.1.0mm (1 Piece)
  • 15ATR061215 - Seal Ring in Copper D.6x12 Sp.1.5mm (1 Piece)
  • CUF25 - Capacitor MF 25 (1 Piece)
  • RBMAS3201 - O-Ring Body Pump BMA-S 32 in NBR (1 Piece)
  • RBMAS3202 - O-Ring Volute Pump BMA-S 32 in NBR (1 Piece)
  • TMB30XC01 - Mechanical Seal x ACB451 - BMA32 (S/G/M) (1 Piece)

KBMAS3212B103C - Spare Parts Kit BMA-S 32/125 B1 230/400V 3Ph 50Hz Complete

  • 02BMA21603 - Impeller BMA 32/125 Low (h3.6) Finito (1 Piece)
  • 15APS192605 - Thickness Ring Type PS DIN988 D.19x26 Sp.0.5mm (4 Pieces)
  • 15APS192610 - Thickness Ring Type PS DIN988 D.19x26 Sp.1.0mm (1 Piece)
  • 15ATR061215 - Seal Ring in Copper D.6x12 Sp.1.5mm (1 Piece)
  • RBMAS3201 - O-Ring Body Pump BMA-S 32 in NBR (1 Piece)
  • RBMAS3202 - O-Ring Volute Pump BMA-S 32 in NBR (1 Piece)
  • TMB30XC01 - Mechanical Seal x ACB451 - BMA32 (S/G/M) (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
