Caleffi

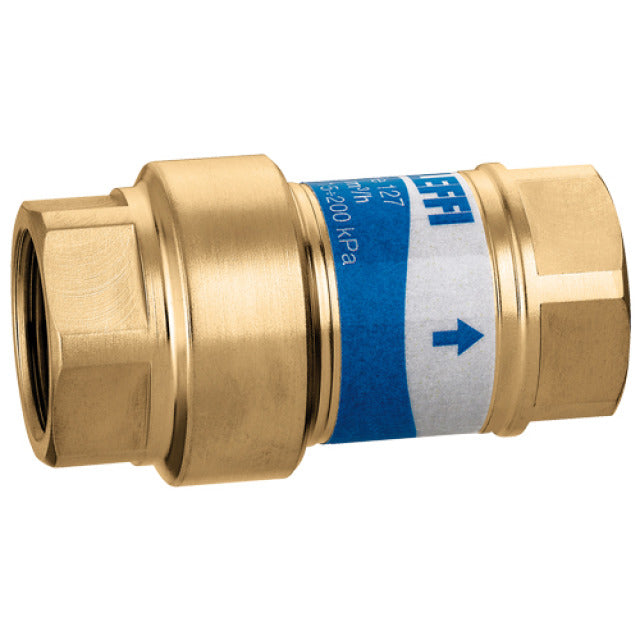

Caleffi balancing flow control

£100.00

Sale Call 01202 739937

Pump type AU6 FLOW CONTROL 127141M35 1/2" AU9 FLOW CONTROL 127141M50 1/2" AU12 FLOW CONTROL 127141M70 1/2" AU18 FLOW CONTROL 1271411M0 1/2" AU24 FLOW CONTROL 1271511M4 3/4" AT36 FLOW CONTROL 1271612M0 1"

Quantity

Product Description:
Compact automatic flow rate regulator, in line, with high resistance tecnopolymer cartridge.
Flow rates: 0,02–0,06 m3/h - Δp range: 20–200 kPa - Accuracy: ± 15 %.
Flow rates: 0,085–11,0 m3/h - Δp range: 15–200 kPa - Accuracy: ± 10 %.

Technical data:
Maximum working pressure: 16 bar
Medium temperature range: 0–100 °C
Maximum percentage of glycol: 50 %
Medium: glycol solutions, water
Material: brass

Flow controls for Dometic AU fan coil units:

AU6: 127141M35 = 0.34 m3/hr (1/2" BSP)

AU9: 127141M50 = 0.52 m3/hr (1/2" BSP)

AU12: 127141M70 = 0.68 m3/hr (1/2" BSP)

AU18: 1271411M0 = 1 m3/hr (1/2" BSP)

AU24: 1271511M4 = 1.37 m3/hr (3/4" BSP reducer to 1/2" is required)

AT36: 1271612M0 = 2.1 m3/hr (1" BSP)

*Male BSP to NPT brass nipple required to thread the flow control onto the fan coil unit

Product specification sheet link
