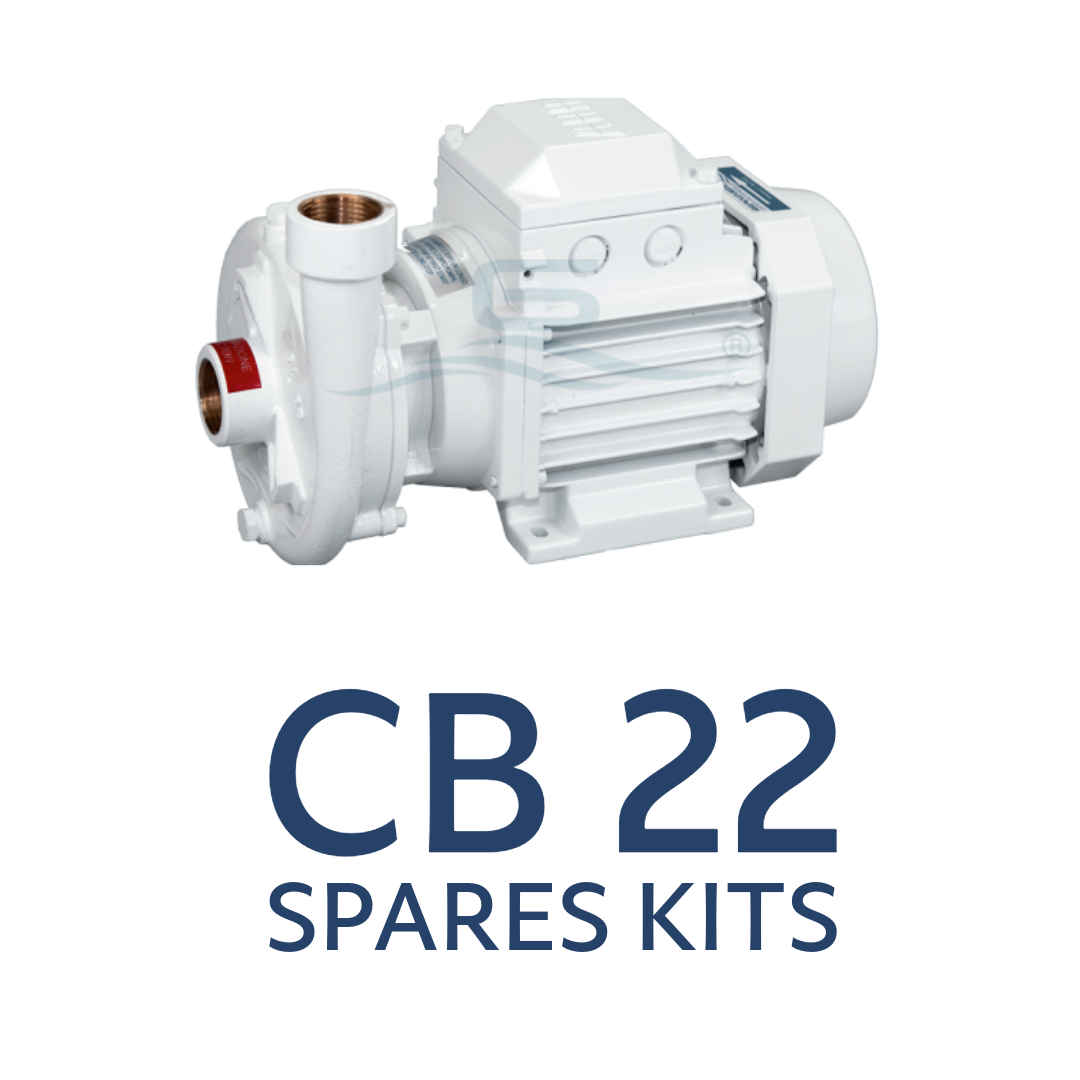

Gianneschi CB 22 Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KCBG22G102 - Spare Parts Kit CB 22-120 230V 50Hz 0.55kW 1Ph 2P

• 02CB22302 - Impeller CB 22-120 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• CUF16 - Capacitor MF 16 con Cavo Bipolare (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G103 - Spare Parts Kit CB 22-120 230/400V 3Ph

• 02CB22302 - Impeller CB 22-120 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G222 - Spare Parts Kit CB 22-110 230V 50Hz & 60Hz 1Ph

• 02CB22315 - Impeller CB 22-106 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• CUF16 - Capacitor MF 16 con Cavo Bipolare (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G223 - Spare Parts Kit CB 22-110 230/400V 50Hz & 60Hz 3Ph

• 02CB22315 - Impeller CB 22-106 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G301 - Spare Parts Kit CB 22-95 24V

• 02CB22314 - Impeller CB 22-95 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• SGM41A - Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G302 - Spare Parts Kit CB 22-95 230V 50Hz 1Ph 0.37kW 2P

• 02CB22314 - Impeller CB 22-95 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• CUF16 - Capacitor MF 16 con Cavo Bipolare (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

KCBG22G303 - Spare Parts Kit CB 22-95 230/400V 50Hz 3Ph 0.37kW 2P

• 02CB22314 - Impeller CB 22-95 Finito (1 Piece)
• 15ATR050810 - Seal Ring in Copper D.5x8 Sp.1.0mm (1 Piece)
• RCBG2201 - O'Ring Body Pump CB 22G in NBR (1 Piece)
• TMB22XC01 - Mechanical Seal X CB22G - CB40G (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
