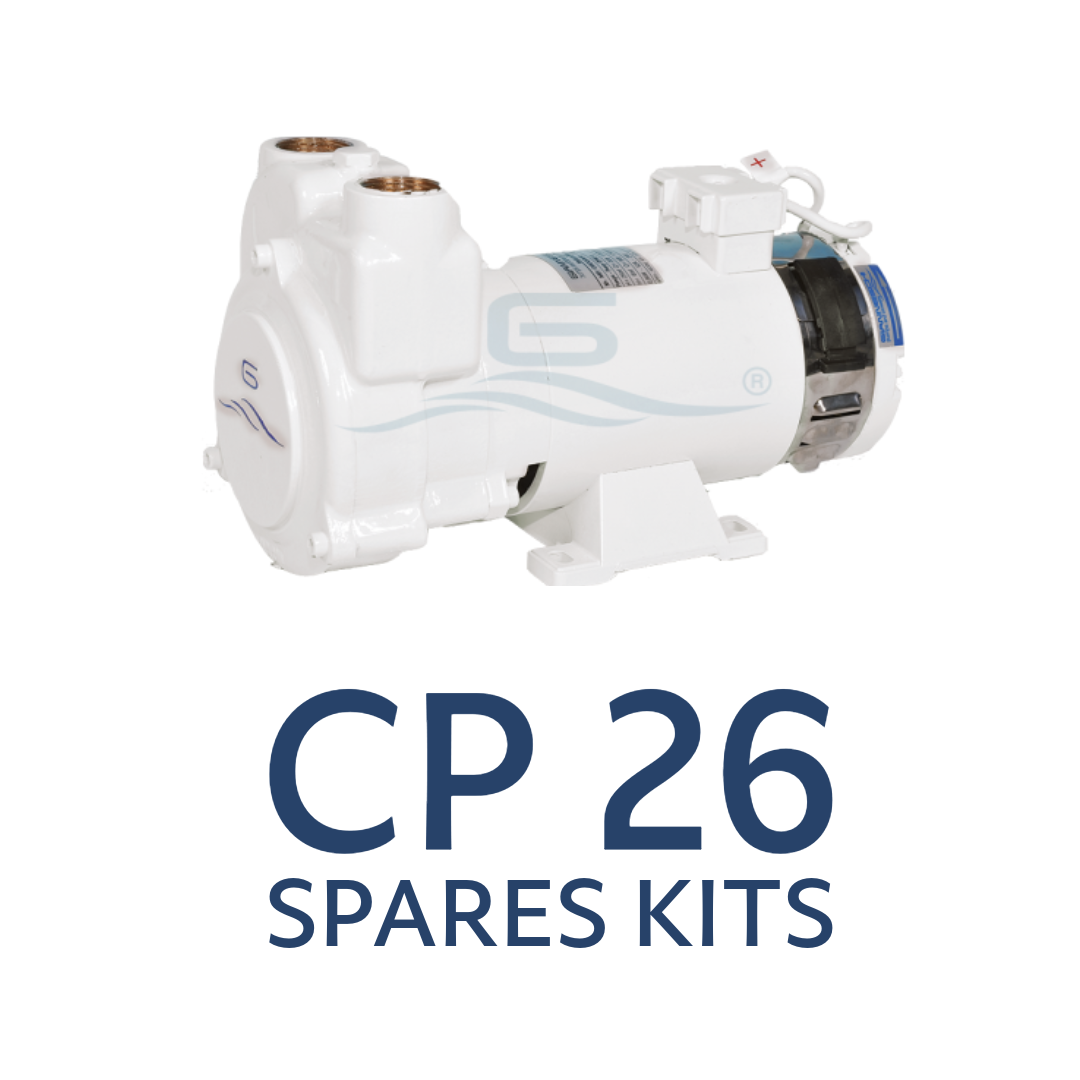

Gianneschi CP 26 Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KCP26012A - Spare Parts Kit CP 26 A2 24V CC

• 02ACP2603A - Impeller in Bronze per CP26 A (1 Piece)
• 30DA10IIB - Impeller Lock Nut M10 AISI316-A4 DIN985 Basso H:9,6mm (1 Piece)
• CH4X4X12 - Key 4x4x12 Inox A4 (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e Ecojet Shaft D.12 (1 Piece)
• RCP26001 - O-Ring Body Pump x CP26 in NBR (1 Piece)
• SR871Y - Brush R87 10x18x18 (4 Pieces)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

KCP2601A - Spare Parts Kit CP 26 A1 24V CC

• 02ACP2603A - Impeller in Bronze per CP26 A (1 Piece)
• 30DA10IIB - Impeller Lock Nut M10 AISI316-A4 DIN985 Basso H:9,6mm (1 Piece)
• CH4X4X12 - Key 4x4x12 Inox A4 (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 e Ecojet Shaft D.12 (1 Piece)
• RCP26001 - O-Ring Body Pump x CP26 in NBR (1 Piece)
• SGM45 - Brush GM4 7x14 in GM4 (4 Pieces)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

KCP2602A - Spare Parts Kit CP 26 A 230V 1Ph

• 02ACP2603A - Impeller in Bronze per CP26 A (1 Piece)
• CUF10 - Capacitor MF 10 (1 Piece)
• RCP26001 - O-Ring Body Pump x CP26 in NBR (1 Piece)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

KCP2603A - Spare Parts Kit CP 26 A 230/400V 3Ph

• 02ACP2603A - Impeller in Bronze per CP26 A (1 Piece)
• RCP26001 - O-Ring Body Pump x CP26 in NBR (1 Piece)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
