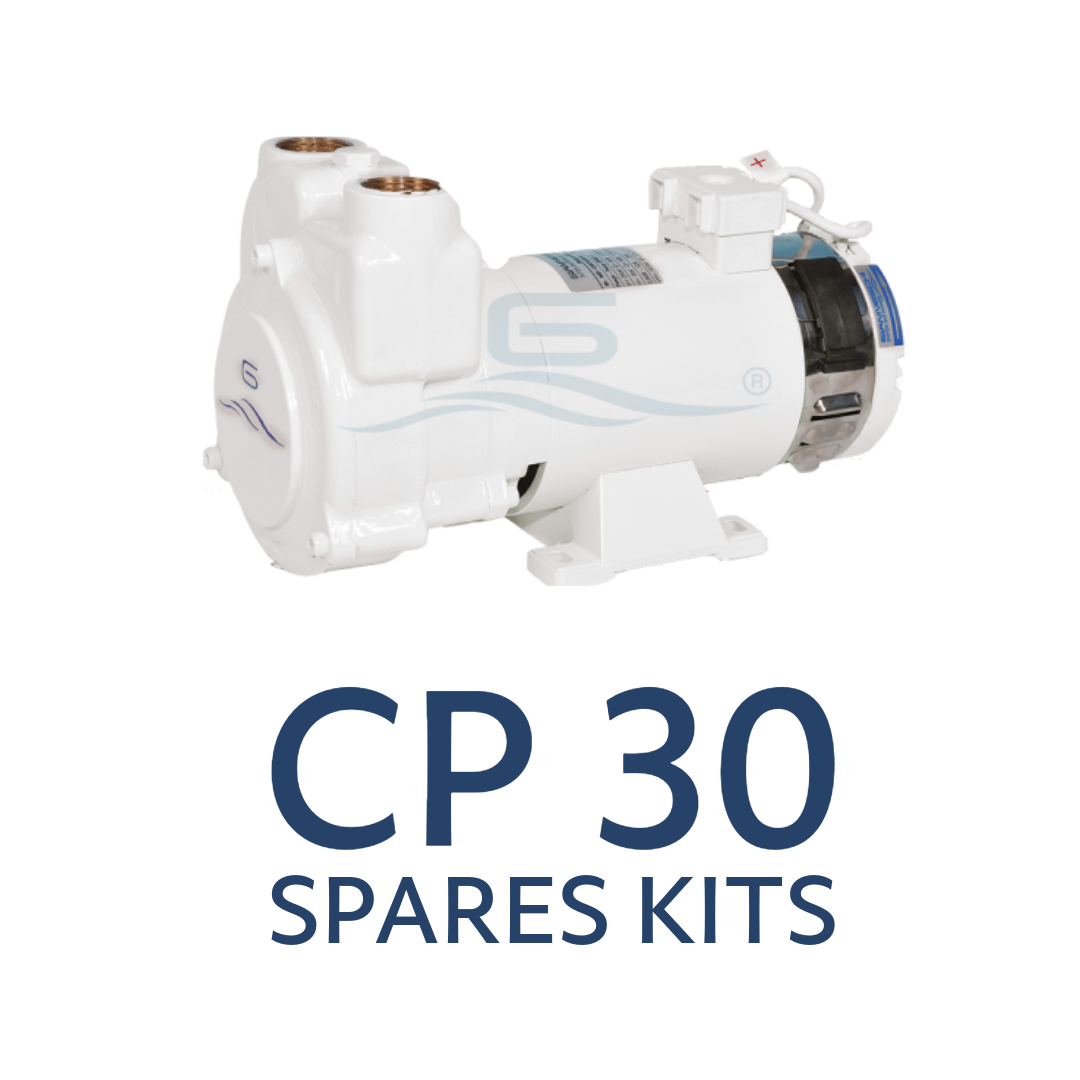

Gianneschi CP 30 Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KCP3001A2 - Spare Parts Kit CP 30 A1-A2 24V CC

• 02ACP303G - Impeller in Bronze per CP30 A (1 Piece)
• RCP257 - Impeller Lock Nut CP25/1A-2A (1 Piece)
• RCP304 - O-Ring Diam.2.62mm (1 Piece)
• RJET1 - Impeller Key x Jet 1-3-4, 4x4x12 (1 Piece)
• SR871Y - Brush R87 10x18x18 (4 Pieces)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

KCP3002A - Spare Parts Kit CP 30 A1 230V 1Ph

• 02ACP303G - Impeller in Bronze per CP30 A (1 Piece)
• CUF12 - Capacitor MF 12.5 con Cavo Bipolare (1 Piece)
• RCP257 - Impeller Lock Nut CP25/1A-2A (1 Piece)
• RCP304 - O-Ring Diam.2.62mm (1 Piece)
• RJET1 - Impeller Key x Jet 1-3-4, 4x4x12 (1 Piece)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

KCP3003A - Spare Parts Kit CP 30 A1 230/400V 3Ph

• 02ACP303G - Impeller in Bronze per CP30 A (1 Piece)
• RCP257 - Impeller Lock Nut CP25/1A-2A (1 Piece)
• RCP304 - O-Ring Diam.2.62mm (1 Piece)
• RJET1 - Impeller Key x Jet 1-3-4, 4x4x12 (1 Piece)
• TMA16YC01 - Mechanical Seal x MV44 - CP30 - CP26 (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
