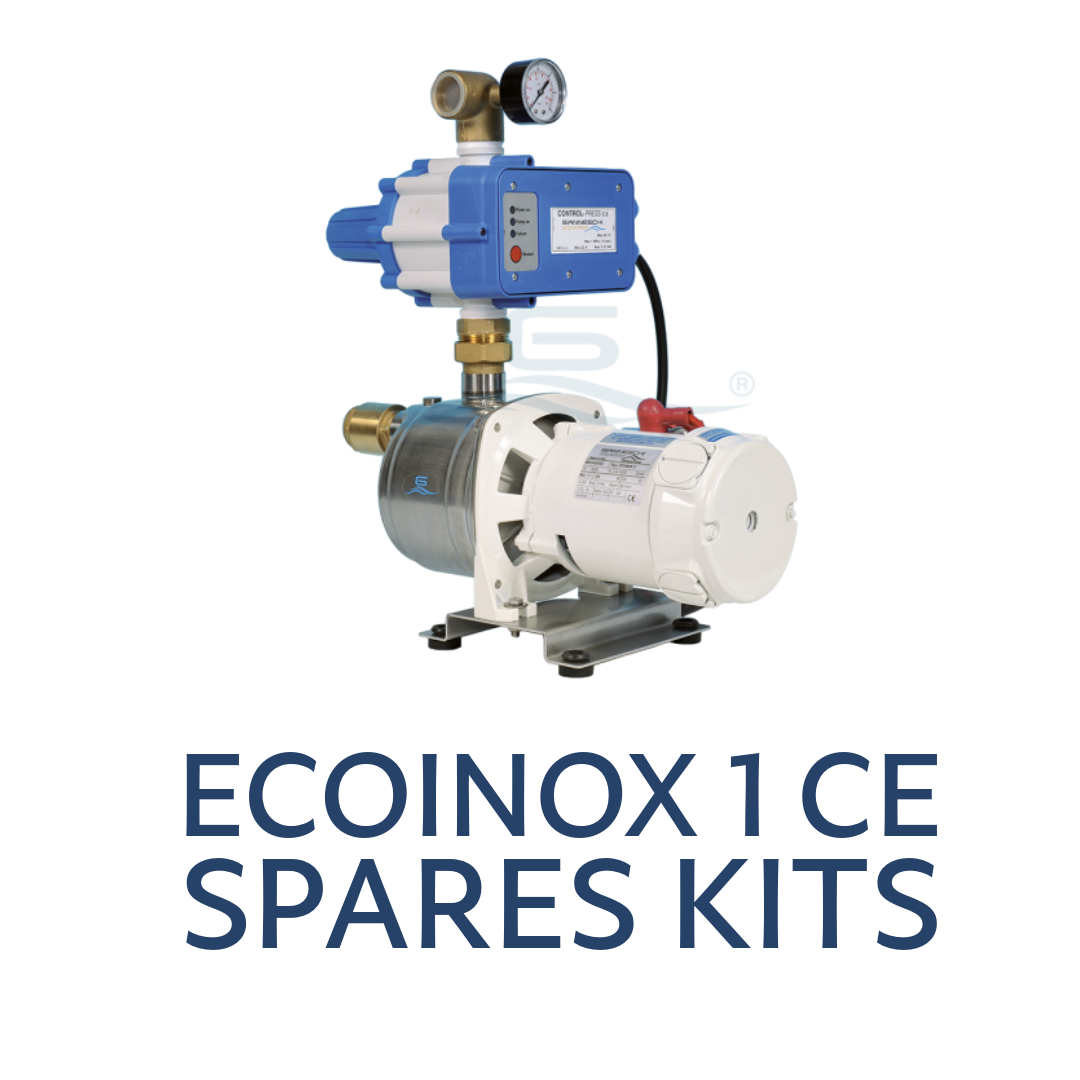

Gianneschi ECOINOX 1 CE Spares Kits (Version 01/06 - 02/15)

These are the individual parts included in the kit, please check the kit part number is correct:

KZECOI1CE00T – Kit Ric. ECOINOX 1 CE 12V CC (Vers. 01/06–02/15)

• 15CE0 – Control-Press C.E. 015 (12V CC) 1.5 BAR 1'' (1 Piece)
• 15MRD506P – Pressure Gauge D.50 – 0–6 ATE (1 Piece)
• 15RELE0 – Relè 12 VCC M24059 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11C – Impeller x ECOINOX 1 in Noril (1 Piece)
• RECOJ12I – O'Ring ECOINOX (Seal Body) (1 Piece)
• RECOJ14I – Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12KC01 – Mechanical Seal x ECOINOX (1 Piece)

KZECOI1CE01T – Kit Ric. ECOINOX 1 CE 24V CC (Vers. 01/06–02/15)

• 15CE1 – Control-Press C.E. 115 (24V CC) 1.5 BAR 1'' (1 Piece)
• 15MRD506P – Pressure Gauge D.50 – 0–6 ATE (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11C – Impeller x ECOINOX 1 in Noril (1 Piece)
• RECOJ12I – O'Ring ECOINOX (Seal Body) (1 Piece)
• RECOJ14I – Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12KC01 – Mechanical Seal x ECOINOX (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
