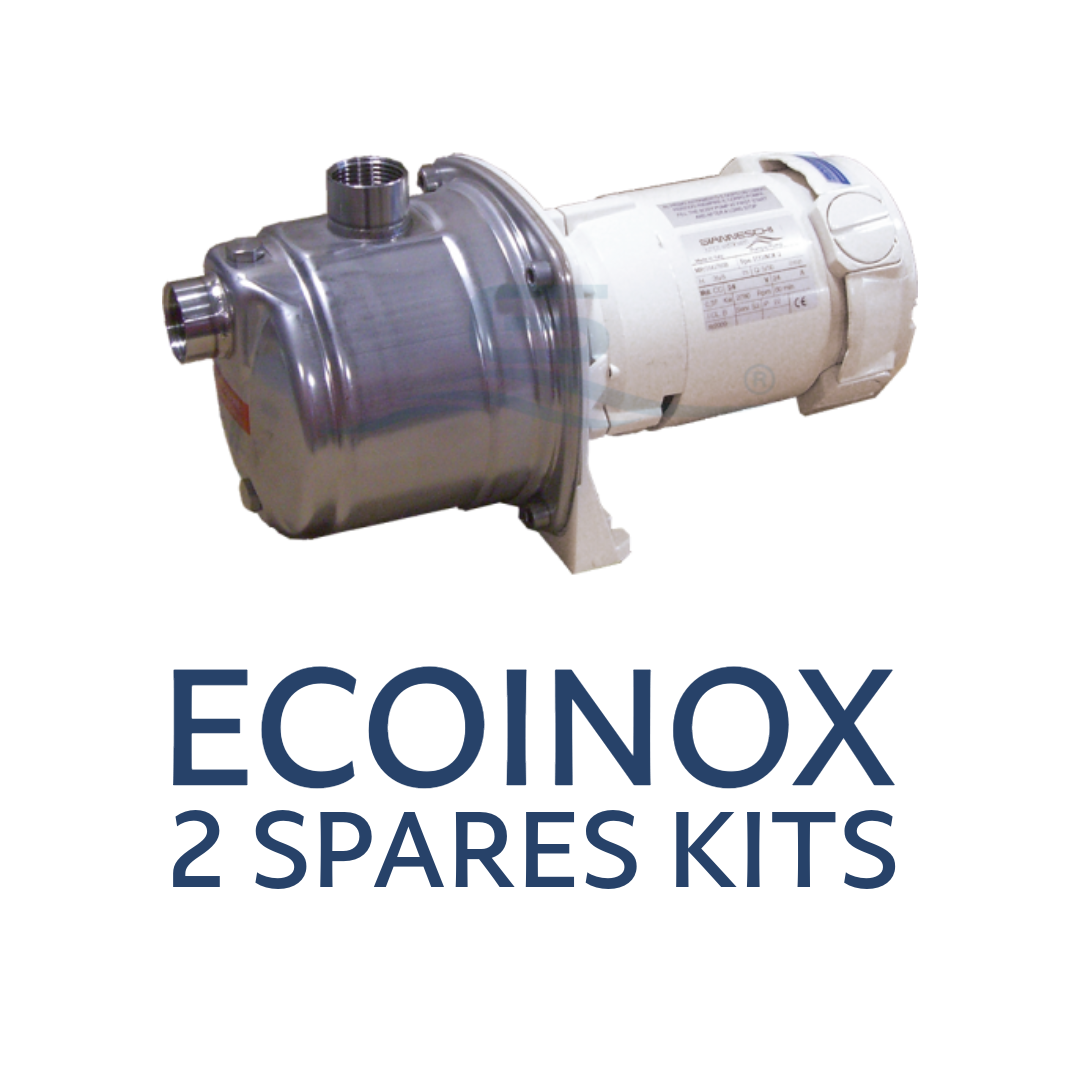

Gianneschi ECOINOX 2 Spares Kits

These are the individual parts included in the kits, please check the kit part number is correct:

KECOI201T - Spare Parts Kit ECOINOX2 24V CC (Vers. 01/06–02/15)

• RACB807 - Splash Guard Ring x ACB 80/90 and ECOJET Shaft D.12 (1 Piece)
• RECOJ12C - Impeller x ECOINOX 2 De 120 Noryl (1 Piece)
• RECOJ12I - O-Ring ECOINOX (Seal Body) (1 Piece)
• RECOJ14I - Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 - Impeller Key x ECOJET 1/2, ECOINOX (1 Piece)
• RECOJ19 - Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 - Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12KC01 - Mechanical Seal x ECOINOX (1 Piece)

KECOI202 - Spare Parts Kit ECOINOX2 220V Mono 50Hz (fino al 02/15)

• CUF14F - Capacitor MF 14 Double Faston (1 Piece)
• RACB807 - Splash Guard Ring x ACB 80/90 and ECOJET Shaft D.12 (1 Piece)
• RECOJ12C - Impeller x ECOINOX 2 De 120 Noryl (1 Piece)
• RECOJ12I - O-Ring ECOINOX (Seal Body) (1 Piece)
• RECOJ14I - Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 - Impeller Key x ECOJET 1/2, ECOINOX (1 Piece)
• RECOJ19 - Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12KC01 - Mechanical Seal x ECOINOX (1 Piece)

KECOI203 - Spare Parts Kit ECOINOX2 230/400V Trifase 50Hz (fino al 02/15)

• RACB807 - Splash Guard Ring x ACB 80/90 and ECOJET Shaft D.12 (1 Piece)
• RECOJ12C - Impeller x ECOINOX 2 De 120 Noryl (1 Piece)
• RECOJ12I - O-Ring ECOINOX (Seal Body) (1 Piece)
• RECOJ14I - Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 - Impeller Key x ECOJET 1/2, ECOINOX (1 Piece)
• RECOJ19 - Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12KC01 - Mechanical Seal x ECOINOX (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
