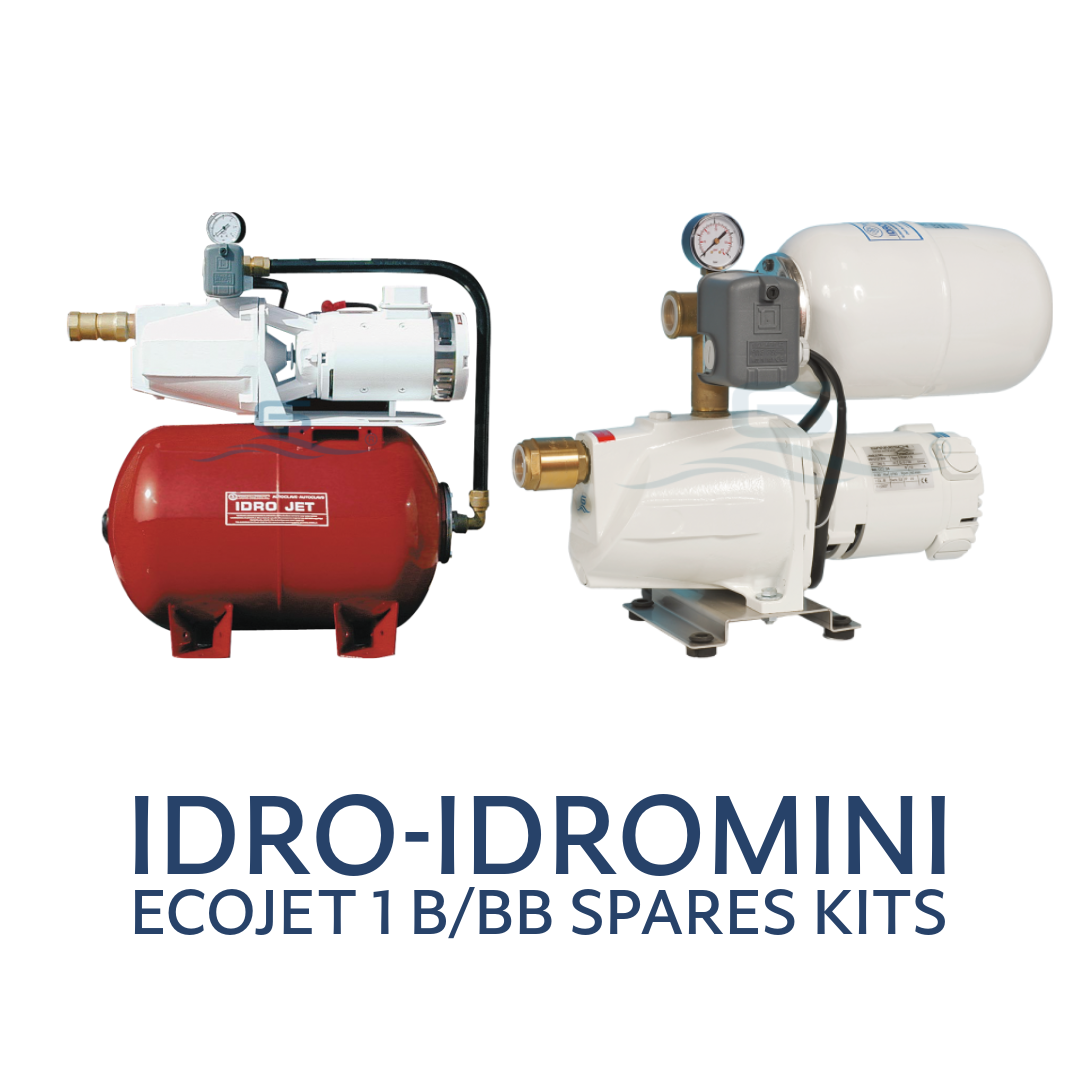

Gianneschi IDRO-IDROMINI ECOJET 1 B/BB Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZECOJ100NPST – Kit Idro-Idromini ECOJET 1 B/BB P/S 12V (Actual Version with Pressure Switch)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• 15RELE0 – Relè 12 VCC M24059 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ100NT – Kit Ric. Idro-Idromini ECOJET 1 B/BB 12V (Actual Version)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• 15RELE0 – Relè 12 VCC M24059 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ101NPST – Kit Idro-Idromini ECOJET 1 B/BB P/S 24V (Actual Version with Pressure Switch)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ101NT – Kit Ric. Idro-Idromini ECOJET 1 B/BB 24V (Actual Version)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM45 – Brush GM4 7x14 in GM4 (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ102N – Kit Idro-Idromini ECOJET 1 B/BB 220V M 50Hz (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• CUF10 – Capacitor MF 10 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ102NPS – Kit Idro-Idromini ECOJET 1 B/BB P/S 220V M (Actual Version with Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• CUF10 – Capacitor MF 10 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ103N – Kit Idro-Idromini ECOJET 1 B/BB Tr. 230/400V 3Ph 50Hz (Actual Version)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

KZECOJ103NPS – Kit Idro-Idromini ECOJET 1 B/BB P/S Tr. 230/400V 3Ph 50Hz (Actual Version with Pressure Switch)

• 15MRD504 – Pressure Gauge RAD.D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ11 – Impeller per ECOJET 1 in Brass D.112 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G – ECOJET (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
