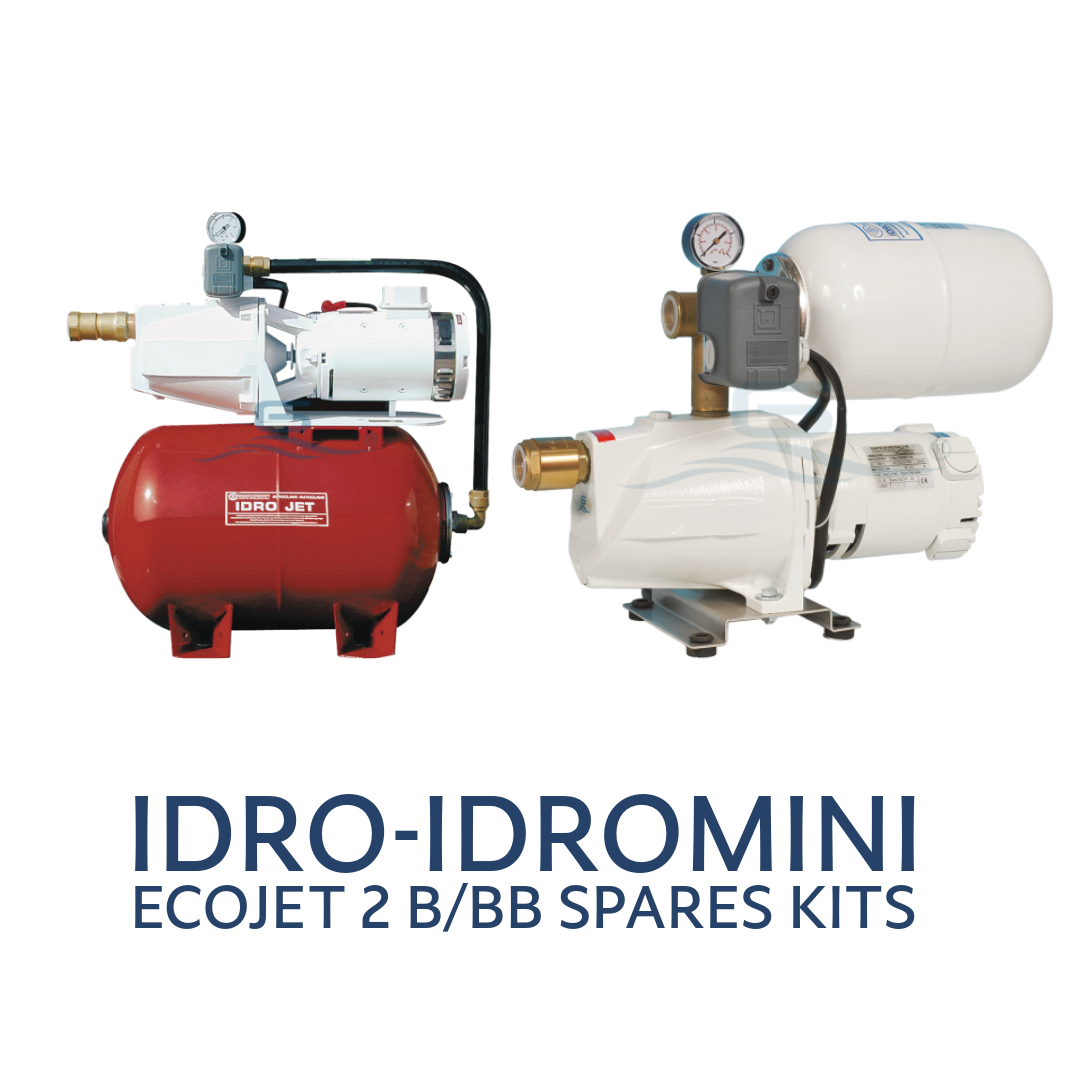

Gianneschi IDRO-IDROMINI ECOJET 2 B/BB Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZECOJ201NPST – Kit Idro-Idromini ECOJET 2 B/BB P/S 24V (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM48L – Brush GM4 10x18x24 + Spring (2B/BB - 2/15) (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

KZECOJ201NT – Kit Ric Idro-Idromini ECOJET 2 B/BB 24V (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• SGM48L – Brush GM4 10x18x24 + Spring (2B/BB - 2/15) (4 Pieces)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

KZECOJ202N – Kit Idro-Idromini ECOJET 2 B/BB 220M. (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• CUF14 – Capacitor MF 14 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14I – Diffuser + Venturi x ECOINOX 1–2 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

KZECOJ202NPS – Kit Idro-Idrom. ECOJET2 B/BB P/S 220M (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• CUF14 – Capacitor MF 14 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

KZECOJ203N – Kit Idro-Idromini ECOJET2 B/BB 220/380T (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

KZECOJ203NPS – Kit Idro-Idrom. ECOJET2 B/BB P/S Tr. (Actual Version)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• RECOJ112 – Impeller x ECOJET2 Diam.E.120 Hole Diam.9 (1 Piece)
• RECOJ12 – O'Ring x ECOJET 1–2 Viton 141.5x2.62 (1 Piece)
• RECOJ14N – Diffuser + Venturi ECOJET 1–2 New BR. 2004 (1 Piece)
• RECOJ18 – Impeller Key x ECOJET1/2 ECOINOX (1 Piece)
• RECOJ19 – Impeller Lock Nut M8x1 Inox (1 Piece)
• TMA12WC01 – Mechanical Seal x CP20G - ECOJET (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
