Gianneschi

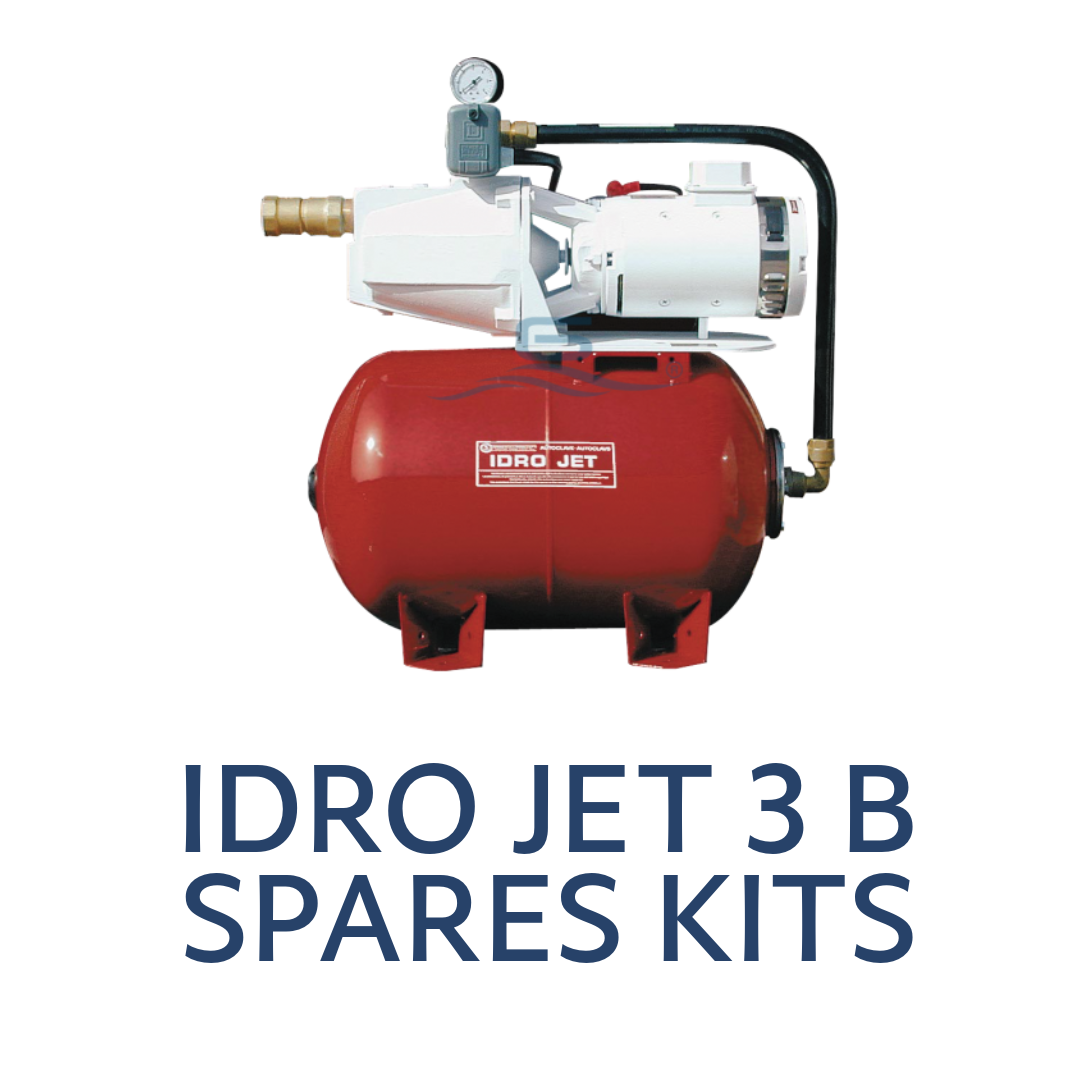

Gianneschi IDRO JET 3 B Spares Kits

Gianneschi IDRO JET 3 B Spares Kits

Regular price £607.00
Regular price Sale price £607.00
Sale Call 01202 739937
Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZJET301 – Kit Ric. IDRO JET 3 24V CC

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET301PS – Kit Ric. IDRO JET 3 P/S 24V CC (With Pressure Switch)

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
  • 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET302 – Kit Ric. IDRO JET 3 B 220V Mono 50Hz

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • CUF16F – Capacitor MF 16 Double Faston (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET302PS – Kit Ric. IDRO JET 3 B P/S 220V Mono 50Hz (With Pressure Switch)

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
  • CUF16F – Capacitor MF 16 Double Faston (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET303 – Kit Ric. IDRO JET 3 B 220/380V TR. 50Hz

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET303PS – Kit Ric. IDRO JET 3 B P/S 220/380V TR. 50Hz (With Pressure Switch)

  • 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
  • 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
  • RJET1 – Impeller Key x JET 1-3-4, 4x4x12 (1 Piece)
  • RJET12 – O'Ring x JET 1-3-4 (1 Piece)
  • RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14 (1 Piece)
  • RJET20 – Seeger x 1-4 JET per Shaft (1 Piece)
  • RJET32 – Venturi per JET 3 (1 Piece)
  • RJET41 – Impeller per JET 3/4 Diam.130mm (1 Piece)
  • RJET43 – Diffuser per JET 3/4 (1 Piece)
  • TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
