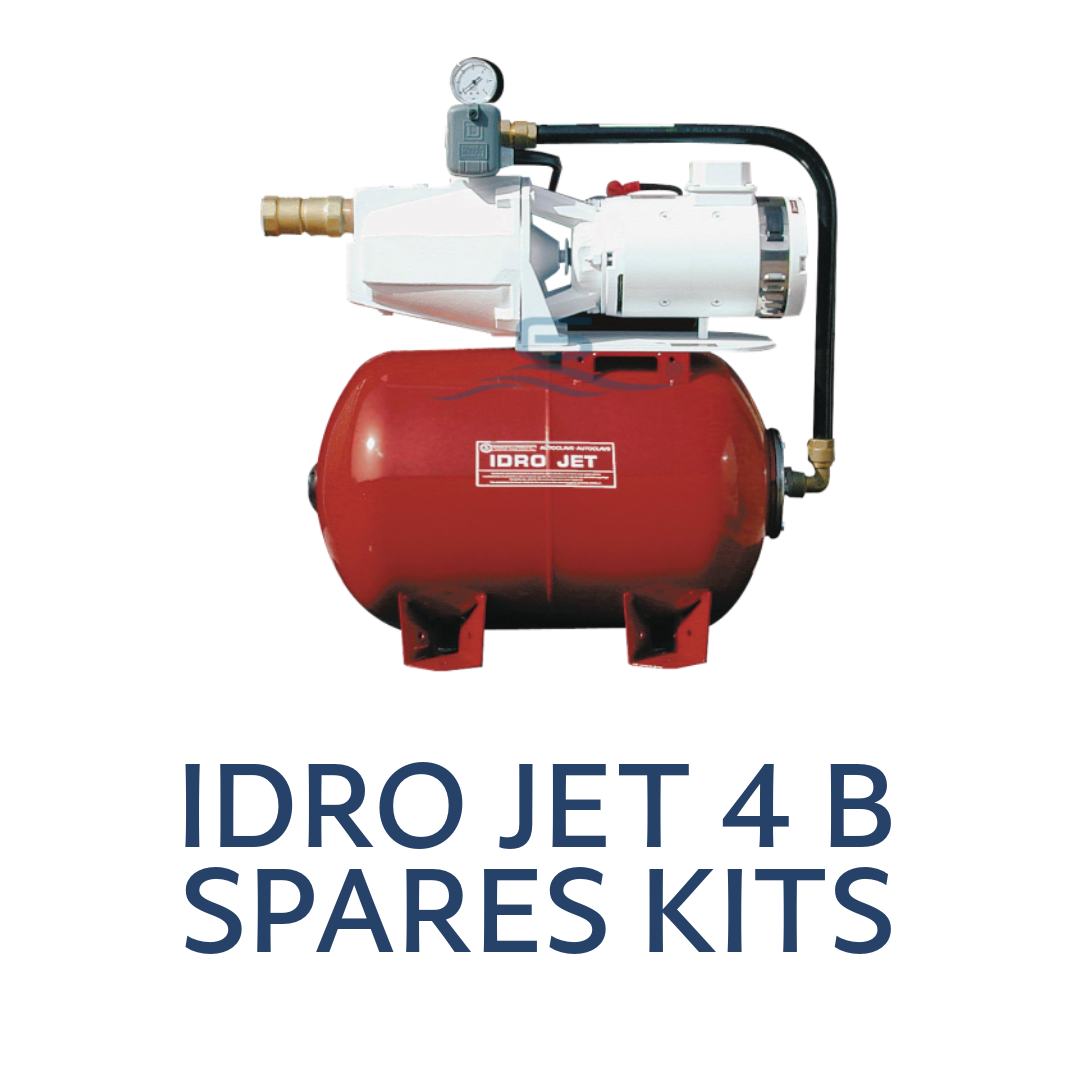

Gianneschi IDRO JET 4 B Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZJET401 – Kit Ric. IDRO JET 4 B 24V CC

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

KZJET401PS – Kit Ric. IDRO JET 4 B P/S 24V CC (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

KZJET402 – Kit Ric. IDRO JET 4 B 220V Mono 50Hz

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• CUF20F – Capacitor MF 20 con Double Faston
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

KZJET402PS – Kit Ric. IDRO JET 4 B P/S 220V Mono 50Hz (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4
• CUF20F – Capacitor MF 20 con Double Faston
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

KZJET403 – Kit Ric. IDRO JET 4 B 230/400V TR. 50Hz

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

KZJET403PS – Kit Ric. IDRO JET 4 B P/S 220/380V TR. 50Hz (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4
• RJET1 – Impeller Key x JET 1-3-4, 4x4x12
• RJET12 – O'Ring x JET 1-3-4
• RJET18 – Splash Guard Ring x JET 1/3/4-MV 44G Shaft D.14
• RJET20 – Seeger x 1-4 JET per Shaft
• RJET41 – Impeller per JET 3/4 Diam.130mm
• RJET42 – Venturi per JET 4
• RJET43 – Diffuser per JET 3/4
• TMD12Z – Mechanical Seal D.12 x7x72Z7 Inox 316 Roten

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
