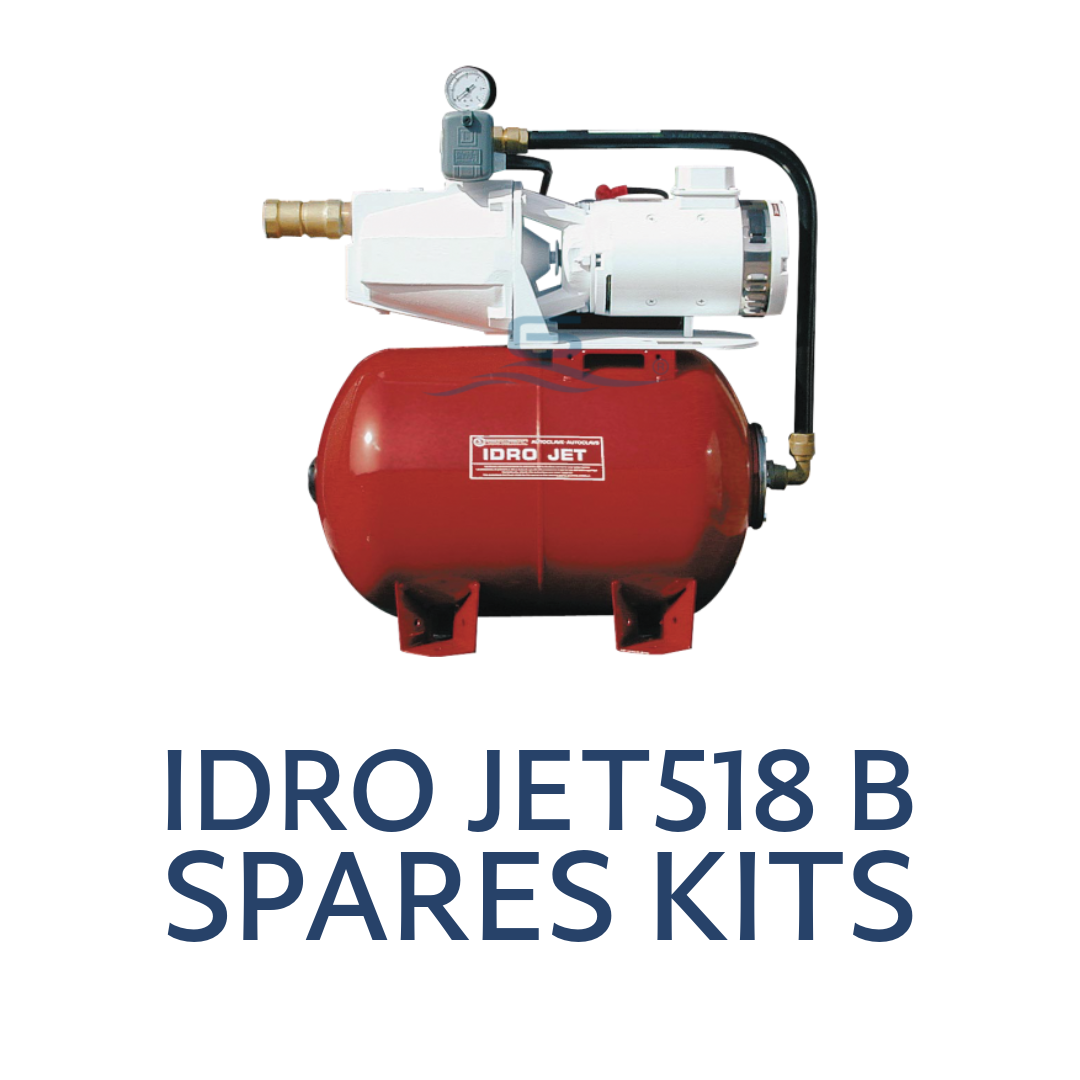

Gianneschi IDRO JET518 B Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZJET51801 – Kit Ric. IDRO JET 518 B 24V CC

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
• RJET5181 – Impeller per JET 518/516 in Bronze (1 Piece)
• RJET5182 – O'Ring x JET 518/22-618/22 722 (1 Piece)
• RJET5184 – Venturi per JET 518-618-718 (1 Piece)
• RJET51851 – Diffuser Beige per JET 5 (1 Piece)
• RJET5186 – Seeger x 518/622 JET per Shaft (1 Piece)
• RJET5187 – Impeller Lock Nut x JET 518/622 (1 Piece)
• RJET518L – Key Inox x JET 518/522/618/622/722 (1 Piece)
• RJET518P – Splash Guard Ring JET 518/522/618/622/722 (1 Piece)
• SGM42A – Brush GM4 10x25x25, with Double Isolated Wire Connection (4 Pieces)
• TMD18Z – Mechanical Seal D.18 x7x72Z7 Inox 316 Roten (1 Piece)

KZJET51801PS – Kit Ric. IDRO JET 518 B P/S 24V CC (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• 15RELE1 – Relè 24 VCC M24063 Contactor 100A (1 Piece)
• Same internal components as KZJET51801

KZJET51802 – Kit Ric. IDRO JET 518 B 220V MONO 50Hz

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• CUF31,5F – Capacitor MF 31.5 Double Faston (1 Piece)
• Same internal components as KZJET51801

KZJET51802PS – Kit Ric. IDRO JET 518 B P/S 220V MONO 50Hz (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• CUF31,5F – Capacitor MF 31.5 Double Faston (1 Piece)
• Same internal components as KZJET51801

KZJET51803 – Kit Ric. IDRO JET 518 B 230/400V TR. 50Hz

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• Same internal components as KZJET51801 (minus capacitor and pressure switch)

KZJET51803PS – Kit Ric. IDRO JET 518 B P/S 230/400V TR. 50Hz (With Pressure Switch)

• 15MRD636 – Pressure Gauge RAD.D.63 6 BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• Same internal components as KZJET51801

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
