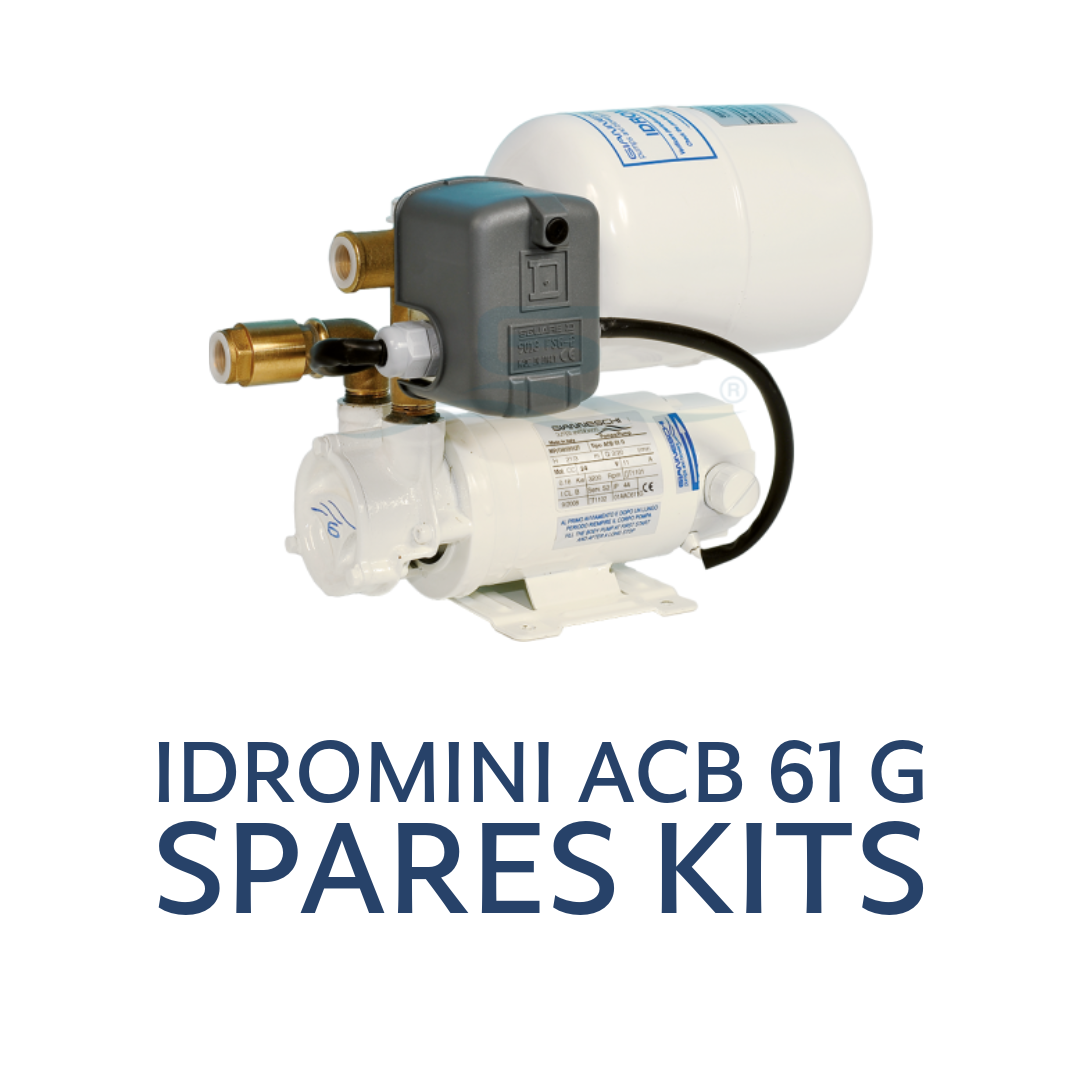

Gianneschi IDROMINI ACB 61 G Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZACB6100G – Kit Ric. Idromini ACB61 G 12V CC

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• RACB501E – Impeller per ACB 50/61–60 E/G in Bronze (1 Piece)
• RACB502 – O'Ring per ACB 50/60/61 (1 Piece)
• RACB503E – Key per ACB 50/61–60E 3x3x8 (1 Piece)
• RACB504 – Seeger Type E DIN 471 9 in Bronze (1 Piece)
• RACB61101 – Mechanical Seal per ACB 61 G (1 Piece)
• SGM46 – Brush GM4 7x14x25 in GM4 (2 Pieces)

KZACB6100GPS – Kit Ric. Idromini ACB61 G 12V P/S

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB501E – Impeller per ACB 50/61–60 E/G in Bronze (1 Piece)
• RACB502 – O'Ring per ACB 50/60/61 (1 Piece)
• RACB503E – Key per ACB 50/61–60E 3x3x8 (1 Piece)
• RACB504 – Seeger Type E DIN 471 9 in Bronze (1 Piece)
• RACB61101 – Mechanical Seal per ACB 61 G (1 Piece)
• SGM46 – Brush GM4 7x14x25 in GM4 (2 Pieces)

KZACB6101G – Kit Ric. Idromini ACB61 G 24V CC

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• RACB501E – Impeller per ACB 50/61–60 E/G in Bronze (1 Piece)
• RACB502 – O'Ring per ACB 50/60/61 (1 Piece)
• RACB503E – Key per ACB 50/61–60E 3x3x8 (1 Piece)
• RACB504 – Seeger Type E DIN 471 9 in Bronze (1 Piece)
• RACB61101 – Mechanical Seal per ACB 61 G (1 Piece)
• SGM46 – Brush GM4 7x14x25 in GM4 (2 Pieces)

KZACB6101GPS – Kit Ric. Idromini ACB61 G 24V P/S

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB501E – Impeller per ACB 50/61–60 E/G in Bronze (1 Piece)
• RACB502 – O'Ring per ACB 50/60/61 (1 Piece)
• RACB503E – Key per ACB 50/61–60E 3x3x8 (1 Piece)
• RACB504 – Seeger Type E DIN 471 9 in Bronze (1 Piece)
• RACB61101 – Mechanical Seal per ACB 61 G (1 Piece)
• SGM46 – Brush GM4 7x14x25 in GM4 (2 Pieces)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
