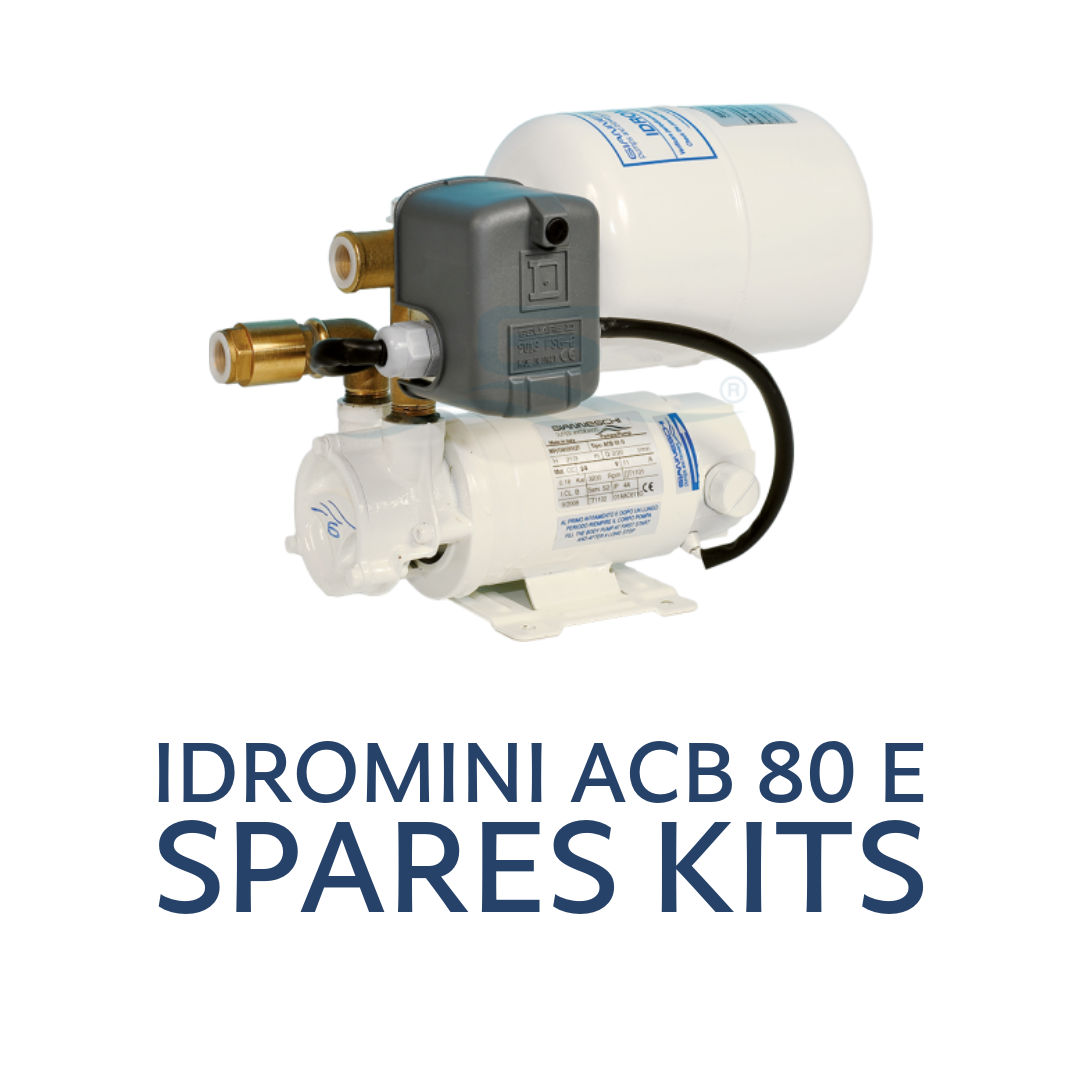

Gianneschi IDROMINI ACB 80 E Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KZACB8001E – Kit Ric. Idromini ACB80 E 24V CC (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KZACB8001EPS – Kit Ric. Idromini ACB80 E 24V P/S (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KZACB8002E – Kit Ric. Idromini ACB80 E 220V MONO (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KZACB8002EPS – Kit Ric. Idromini ACB80 E 220V MONO P/S (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KZACB8003E – Kit Ric. Idromini ACB80 E 220/380V TR. (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

KZACB8003EPS – Kit Ric. Idromini ACB80 E 220/380V TR. P/S (Actual Version)

• 15MRD504 – Pressure Gauge Rad. D.50 4BAR (1 Piece)
• 15PRFSM4 – Safety Pressure Switch FSG-2 M4 (1 Piece)
• RACB801N – Impeller per ACB 80E Bronze (1 Piece)
• RACB802 – O'Ring per ACB 80 (1 Piece)
• RACB803 – Diffuser per ACB 80 in Bronze (1 Piece)
• RACB804I – Seeger x EL/P. ACB 80/90–JET 3/4/4R–CB20/22 (1 Piece)
• RACB806 – Key per ACB80–90E CB20–22E 4x4x12 AISI316 (1 Piece)
• RACB807 – Splash Guard Ring x ACB 80/90 and Ecojet Shaft D.12 (1 Piece)
• TMD12Y – Mechanical Seal D.12 XYXY2Z Y Viton-Inox (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
