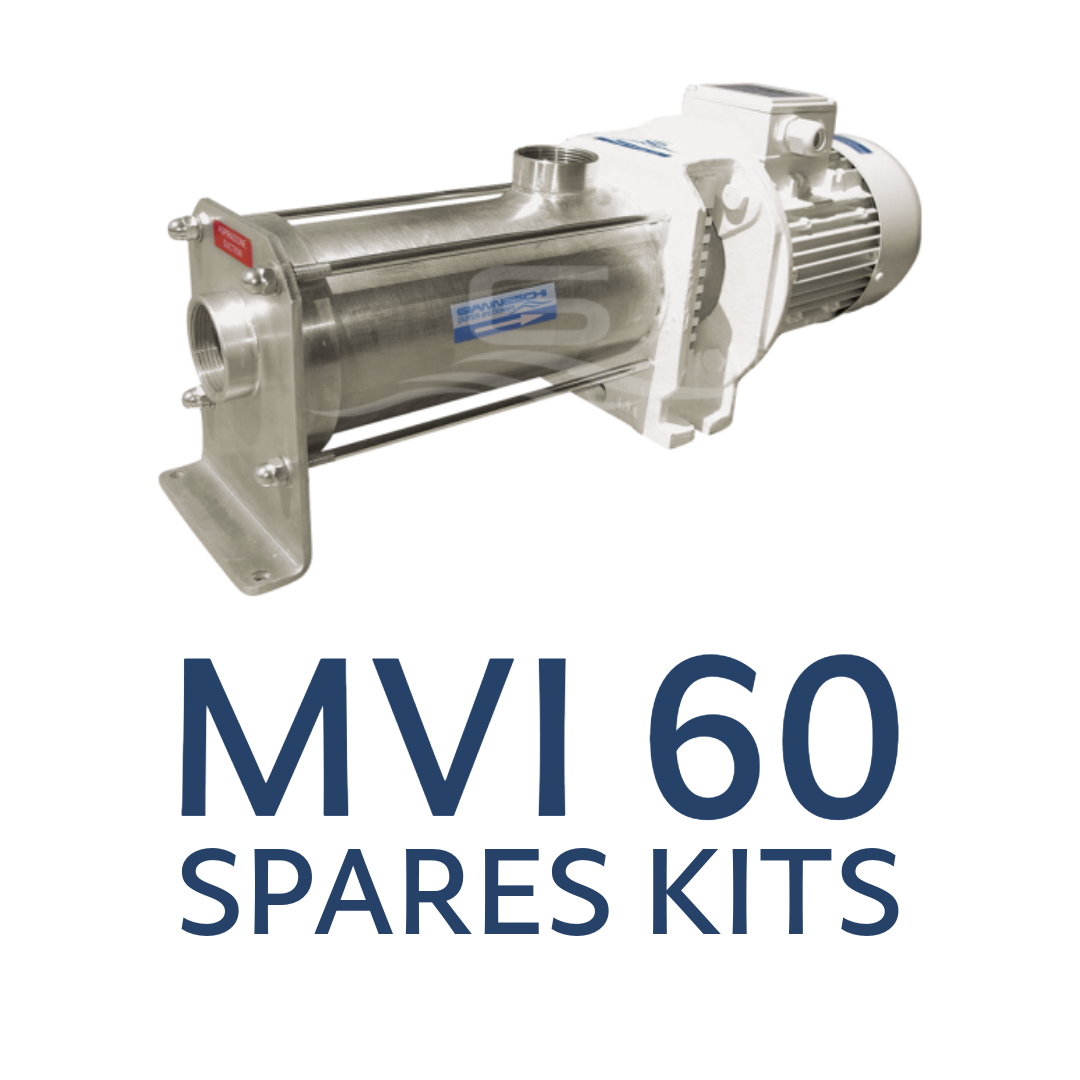

Gianneschi MVI 60 Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KMVI6001 – Spare Parts Kit MVI60 24V CC Reduced

• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI6001C – Spare Parts Kit MVI60 24V CC Complete

• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• RMVI6002 – Rotor per MVI60 in AISI 316 (1 Piece)
• RMVI6003 – Joint per MVI60 (1 Piece)
• SGM41A – Brush GM4 10x18x19 with Protected Tail (4 Pieces)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI6002 – Spare Parts Kit MVI60 230V MONO Reduced

• CUF31,5 – Capacitor MF 31,5 (1 Piece)
• CUF40DSG – Capacitor MF40 with Circuit Breaker (1 Piece)
• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI6002C – Spare Parts Kit MVI60 230V MONO Complete

• CUF31,5 – Capacitor MF 31,5 (1 Piece)
• CUF40DSG – Capacitor MF40 with Circuit Breaker (1 Piece)
• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• RMVI6002 – Rotor per MVI60 in AISI 316 (1 Piece)
• RMVI6003 – Joint per MVI60 (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI6003 – Spare Parts Kit MVI60 230/400V Trifase Reduced

• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI6003C – Spare Parts Kit MVI60 230/400V Trifase Complete

• RMVI6001 – Stator per MVI60 in Buna NBR (1 Piece)
• RMVI6002 – Rotor per MVI60 in AISI 316 (1 Piece)
• RMVI6003 – Joint per MVI60 (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
