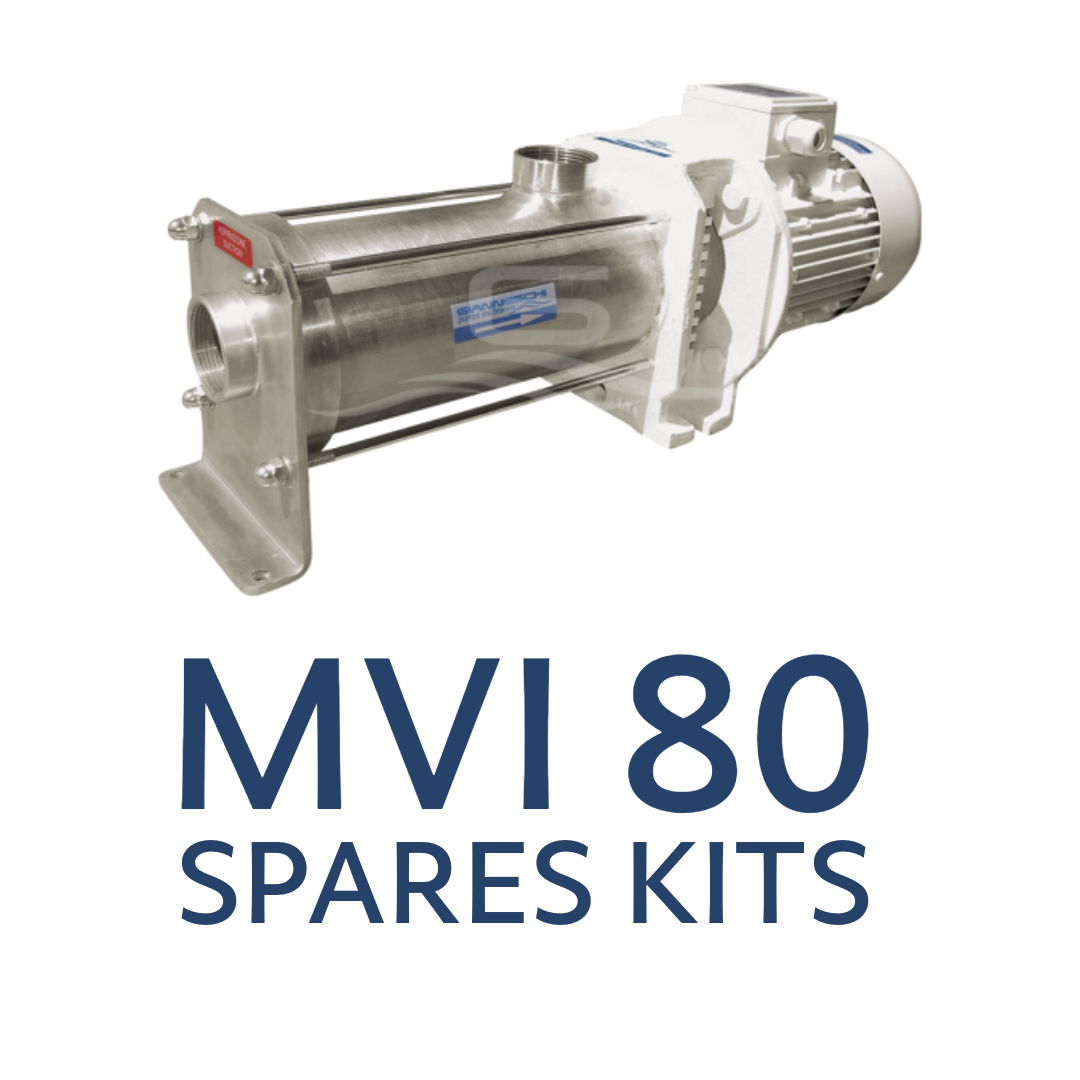

Gianneschi MVI 80 Spares Kits

These are the individual parts included in the kit, please check the kit part number is correct:

KMVI8001 – Spare Parts Kit MVI80 24V CC Reduced

• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• SGM42A – Brush GM4 10x25x25, with Double Isolated Wire Connection (4 Pieces)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI8001C – Spare Parts Kit MVI80 24V CC Complete

• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• RMVI8002 – Rotor per MVI80 in AISI 316 (1 Piece)
• RMVI8003 – Joint per MVI80 (1 Piece)
• SGM42A – Brush GM4 10x25x25, with Double Isolated Wire Connection (4 Pieces)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI8002 – Spare Parts Kit MVI80 230V MONO Reduced

• CUF40 – Capacitor MF 40 (1 Piece)
• CUF40DSG – Capacitor MF40 with Circuit Breaker (1 Piece)
• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI8002C – Spare Parts Kit MVI80 230V MONO Complete

• CUF40 – Capacitor MF 40 (1 Piece)
• CUF40DSG – Capacitor MF40 with Circuit Breaker (1 Piece)
• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• RMVI8002 – Rotor per MVI80 in AISI 316 (1 Piece)
• RMVI8003 – Joint per MVI80 (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI8003 – Spare Parts Kit MVI80 230/400V Trifase Reduced

• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

KMVI8003C – Spare Parts Kit MVI80 230/400V Trifase Complete

• RMVI8001 – Stator per MVI80 in Buna NBR (1 Piece)
• RMVI8002 – Rotor per MVI80 in AISI 316 (1 Piece)
• RMVI8003 – Joint per MVI80 (1 Piece)
• TMG25V – Mechanical Seal D.25 Viton G T 25x47 CF 50x2 (1 Piece)

If the spares kit is not in stock, it will be approximately a 2–4 week lead time from the factory.
Please contact Nauticool to purchase this kit or the individual spares.
